Manufacturer: HEITEC AG

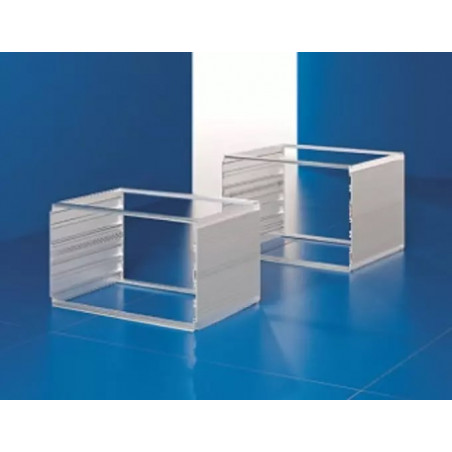

HEIPAC VARIO-Module housing

Heipac Vario-Module - a modern enclosure system designed for portable and stationary applications.


The use of HEIPAC VARIO-module housing

The Heipac Vario-Module housing can work in a rack cabinet or as a housing for measuring apparatus. It is designed to build PCB cards or other electronic components. Stationary or portable applications.


Technical characteristics of the HEIPAC VARIO-module housing

  • Housing in the 19 "System Complies with IEC 60 297-3
  • Designed to work in a rack cabinet or for measuring apparatus.
  • Basic type of casing without lower and upper cover.
  • Height: 2 to 7 U
  • Mounting width: 42, 63 or 84 HP
  • Depth: 250 to 430 mm
  • Configurable internal installation space.
  • Housing made of extruded aluminum.
  • IP 40 protection degree

Basic advantages of HEIPAC VARIO-Module housing

  • Easy change from the Subbrack version for the housing for measuring apparatus
  • A wide range of accessory available
  • Universal execution
  • Basic type of housing with many configuration capabilities
  • Available version with EMC protection (option)

Heipac Vario-Module 2 U

Product No. Height (he) Width (te) Side panel depth Version Color
3982000 2 U 42 hp 250.4 mm basic housing Ral 7035
3982020 2 U 42 hp 310.4 mm basic housing Ral 7035
3982290 2 U Working width 63 hp 250.4 mm basic housing Ral 7035
3982300 2 U Working width 63 hp 310.4 mm basic housing Ral 7035
3982010 2 U 84 HP 250.4 mm basic housing Ral 7035
3982030 2 U 84 HP 310.4 mm basic housing Ral 7035


Heipac Vario-Module 2 U, EMC

Product No. Height (he) Width (te) Side panel depth Version Color
3983000 2 U 42 hp 250.4 mm basic housing Ral 7035 Yes
3983020 2 U 42 hp 310.4 mm basic housing Ral 7035 Yes
3983290 2 U Working width 63 hp 250.4 mm basic housing Ral 7035 Yes
3983300 2 U Working width 63 hp 310.4 mm basic housing Ral 7035 Yes
3983010 2 U 84 HP 250.4 mm basic housing Ral 7035 Yes
3983030 2 U 84 HP 310.4 mm basic housing Ral 7035 Yes


Heipac Vario-Module 3 U

Product No. Height (he) Width (te) Side panel depth Version Color
3982040 3 U 42 hp 250.4 mm basic housing Ral 7035
3982070 3 U 42 hp 310.4 mm basic housing Ral 7035
3982050 3 U Working width 63 hp 250.4 mm basic housing Ral 7035
3982080 3 U Working width 63 hp 310.4 mm basic housing Ral 7035
3982060 3 U 84 HP 250.4 mm basic housing Ral 7035
3982090 3 U 84 HP 310.4 mm basic housing Ral 7035
3982100 3 U 84 HP 370.4 mm basic housing Ral 7035


Heipac Vario-Module 3 U, EMC

Product No. Height (he) Width (te) Side panel depth Version Color
3983040 3 U 42 hp 250.4 mm basic housing Ral 7035 Yes
3983070 3 U 42 hp 310.4 mm basic housing Ral 7035 Yes
3983050 3 U Working width 63 hp 250.4 mm basic housing Ral 7035 Yes
3983080 3 U Working width 63 hp 310.4 mm basic housing Ral 7035 Yes
3983060 3 U 84 HP 250.4 mm basic housing Ral 7035 Yes
3983090 3 U 84 HP 310.4 mm basic housing Ral 7035 Yes
3983100 3 U 84 HP 370.4 mm basic housing Ral 7035 Yes


Heipac Vario-Module 4 U, 6 U, 7 U

Product No. Height (he) Width (te) Side panel depth Version Color
3982110 4 U (3 + 1) 84 HP 250.4 mm basic housing Ral 7035
3982120 4 U (3 + 1) 84 HP 310.4 mm basic housing Ral 7035
3982130 4 U (3 + 1) 84 HP 370.4 mm basic housing Ral 7035
3982140 6 u 84 HP 310.4 mm basic housing Ral 7035
3982150 6 u 84 HP 370.4 mm basic housing Ral 7035
3982160 6 u 84 HP 430.4 mm basic housing Ral 7035
3982170 7 U (6 + 1) 84 HP 310.4 mm basic housing Ral 7035
3982190 7 U (6 + 1) 84 HP 430.4 mm basic housing Ral 7035


Heipac Vario-Module 4 U, 6 U, 7 U, EMC

Product No. Height (he) Width (te) Side panel depth Version Color
3983110 4 U (3 + 1) 84 HP 250.4 mm basic housing Ral 7035 Yes
3983120 4 U (3 + 1) 84 HP 310.4 mm basic housing Ral 7035 Yes
3983130 4 U (3 + 1) 84 HP 370.4 mm basic housing Ral 7035 Yes
3983140 6 u 84 HP 310.4 mm basic housing Ral 7035 Yes
3983150 6 u 84 HP 370.4 mm basic housing Ral 7035 Yes
3983160 6 u 84 HP 430.4 mm basic housing Ral 7035 Yes
3983170 7 U (6 + 1) 84 HP 310.4 mm basic housing Ral 7035 Yes
3983190 7 U (6 + 1) 84 HP 430.4 mm basic housing Ral 7035 Yes
