Manufacturer: CAMDENBOSS

Hex Raspberry Pi4B series housing (Pi4hex)

A wide selection of solutions for Raspberry Pi tiles. Dedicated enclosures can protect against falling, dusting and destroying electronics hidden inside. Additional ventilation can provide better cooling. Some models have special non-slip feet and are designed to allow access to GPIO pins or other important parts of the board.

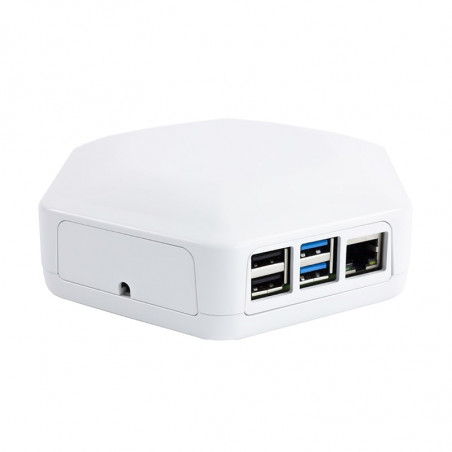

  • Hexagon shaped enclosure for the Raspberry Pi 4B, ideal for smart home IoT devices
  • Pi 4B PCB screws into x4 pillars (screws supplied)
  • Fan venting on side of case (fan not included)
  • Fan venting designed for 30mm fan
  • Cut-outs for ethernet and USB ports only
  • Rear cable exit for all other connections
  • Rear ventilation
  • Keyhole mounting slots on the underside
  • Removable cover retained by screws (supplied)
  • Supplied with push fit rubber feet





Part no. Colour Material type Material temperature UL rating Material thickness Dimensions
CBRPI4B-HX-BK Black High Impact polystyrene +5°C to +70°C UL94-HB 3mm L 149mm x W 130mm x H 36,5mm
CBRPI4B-HX-WH White High Impact polystyrene +5°C to +70°C UL94-HB 3mm L 149mm x W 130mm x H 36,5mm
CBRPI4B-HX-WH Gloss white Acrylic capped ABS +5°C to +85°C UL94-HB 3mm L 149mm x W 130mm x H 36,5mm
