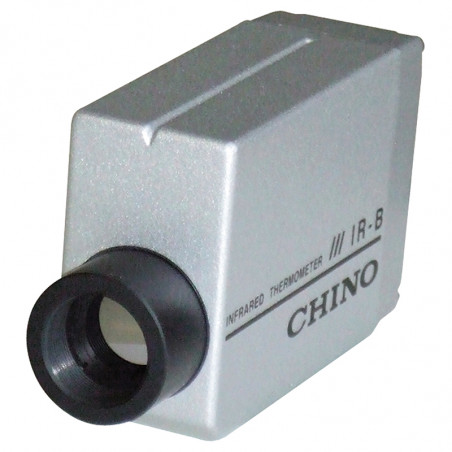

Fast stationary pyrometer in a very small casing IR-BA

Fast stationary pyrometer - IR-BA series

The IR-BA series is a non-contact and high-speed compact radiation thermometer. The card sized thermometer with built-in signal converting function of 4-20mA output can easily be installed in narrow places, production lines and small equipment. A standard speed type and a high-speed type (50ms/95%) are respectively available in standard type and small-target/short-distance type and small-target/long-distance type, and special application types for glass, lamp-anneal, film,and burning gas.


Features:

  • high-speed response (100 ms, 50 ms);
  • compact, light-weight;
  • signal conversion built-in (4..20 mA);
  • emissivity setting by digital switch;
  • Peripheral units including: indicator with power supply, converter with reflection correction, etc.

Technical data

Measurement wave length 8..14 µm
Element Thermopile
Resolution 0,2 °C (0..300 °C)
0,5 °C (0..600 °C)
Repeatability  ±0,2 °C (0..300 °C)
±0,3 °C (0..600 °C)
Emissivity 1.99 to 0.10 by digital switch
Analog output 4..20 mA (Load ≤ 280 Ω)
Operating temperature 0..50 °C
Power supply 12..24 Vdc
Current consumption ≤60 mA
Cable length 2 m
Casing Diecast aluminum
Ingress Protection IPX2
Assembly Fixing 2 x M4 screws or tripod
Weight approx. 220 g


Type   Execution Range Response D/L * Accuracy Wavelength
IR-BAT1A General Standard 0...300 °C 100 ms 40/500 mm

Below 300°C: ±3°C

Over 300°C: ±1% of measured value (emissivity 1,0)

 8...14 µm
IR-BAT1B Standard 0...600 °C 100 ms 40/500 mm 8...14 µm
IR-BAT2A Small target / short distance 0...300 °C 100 ms 5/80 mm 8...14 µm
IR-BATSA Small target / long distance 0...300 °C 100 ms 40/1000 mm 8...14 µm
IR-BATSB Small target / long distance 0...600 °C 100 ms 40/1000 mm 8...14 µm
IR-BAT1M Fast Standard 0...300 °C 50 ms 40/500 mm 8...14 µm
IR-BAT1P Standard 0...600 °C 50 ms 40/500 mm 8...14 µm
IR-BAT2M Small target / short distance 0...300 °C 50 ms 5/80 mm 8...14 µm
IR-BATSM Small target / long distance 0...300 °C 50 ms 40/1000 mm 8...14 µm
IR-BATSP Small target / long distance 0...600 °C 50 ms 40/1000 mm 8...14 µm
IR-BAXG1 Special Glass 100...400 °C 1 s 20/150 mm ±4 °C 4,6...5,2 µm
IR-BAXL1 Annealing lamp 400...1300 °C 1 s 40/500 mm 1% 3,43µm half the bandwidth 120nm
IR-BAXF1 Polyethylene 80...250 °C 1 s 40/500 mm ±4 °C 3,43µm half the bandwidth 120nm
IR-BAXF2 Polyester 50...150 °C 1 s 40/500 mm ±4 °C 7,6...8,4 µm
IR-BAXH1 Burning gas 500...1300 °C 10 s 100/1000 mm 1.5% 4,3 µm

Caution*: D - diameter of measurement area; L - distance from an object


Dependence of the measurement field size on the distance from the object [mm]

PIROMETRY STACJONARNE SERII IR-BA, ZAKRES 0...1300O C zależność wielkości pola pomiarowego do odlegołości

Dimensions [mm]

PIROMETRY STACJONARNE SERII IR-BA, ZAKRES 0...1300O C pirometr wymiar


Connection

PIROMETRY STACJONARNE SERII IR-BA, ZAKRES 0...1300O C podłączenie
