High voltage capacitors - EC series
  • High voltage capacitors - EC series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Vishay

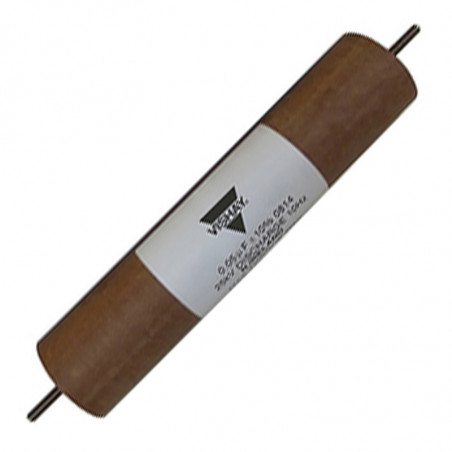

High Voltage Capacitors - EC Series

Application:

HV power supplies, HV filters, RF transmitters.



Technical data

Temperature range:from -40°C to 80°C
Capacitance tolerance:±10% at 1 kHz
Operating time:65°C and UN - 50000 hours
Mounting position:vertical


TypeCapacitance
[µF]
Voltage UDC
[kV]
Dimensions
[mm]
LD
EC100-1040,11011565
EC100-2540,251014075
EC100-5040,51020595
EC200-5030,052018065
EC200-1040,12023065
EC200-2540,252028075
EC200-5040,52036095
EC300-2530,0253024565
EC300-5030,053032065
EC300-1040,13039565
EC300-2540,253051075
EC400-2530,0254030565
EC400-5030,054041065
EC400-1040,14034595
EC500-1030,015027065
EC500-2530,0255033565
EC500-5030,055043075
EC500-1040,15043095
EC600-5020,0056031065
EC600-1030,016031075
EC600-2530,0256039075
EC600-5030,056050075
EC600-1040,16061595
EC800-5020,0058040065
EC800-1030,018040075
EC800-2530,0258050095
EC800-5030,058065095
EC1000-5020,00510048565
EC1000-1030,0110048575
EC1000-2530,02510061095
EC1000-2530,0510080095
EC1200-5020,00512042575


Housing – dimensions [mm]


Kondensatory wysokonapięciowe - seria EC wymiary



Ripple

The value of the DC component and ripple should not exceed the rated voltage of the capacitor. The permissible ripple voltage value in relation to the rated voltage value (peak-to-peak value).


Kondensatory wysokonapięciowe - seria EC wykres tętnienia
