High voltage diode modules
  • High voltage diode modules

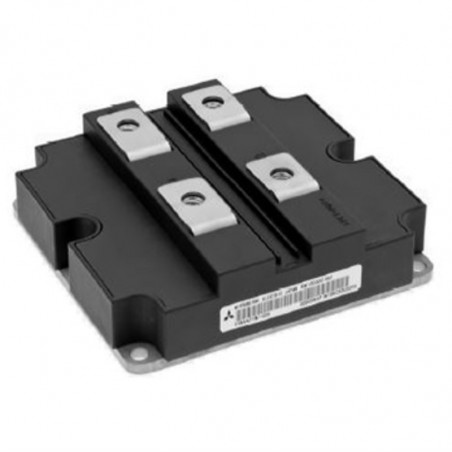

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Mitsubishi

High voltage diode modules

SymbolElectrical scheme
H WYSOKONAPIĘCIOWE MODUŁY DIODOWE schemat elektryczny
D WYSOKONAPIĘCIOWE MODUŁY DIODOWE schemat elektryczny

Electrical data

TypeVRRm
[V]
IDC
[A]
VISO
[V]
IFSM
[A]
VFM
[V]
trr [µs]
max
Casing
RM1200DB-34S 1700 1200 4000 20800 1,9 1 RM4
RM1800HE-34S 1700 1800 6000 9600 2,9 1,8 RM1
RM1200HA-50S 2500 1200 6000 9600 2,9 1,2 RM2
RM400DY-66S 3300 400 6000 3200 3,5 1,2 RM3
RM600DY-66S 3300 600 6000 4800 3,5 1,2 RM3
RM1200HA-66S 3300 1200 6000 9600 3,3 1,2 RM2
RM1200DB-66S 3300 1200 6000 9600 2,9 0,8 RM3
RM1200DG-66S 3300 1200 10200 9600 2,9 0,7 RM5
RM1200HE-66S 3300 1200 6000 9600 3,2 1,4 RM1
RM600HE-90S 4500 600 6000 4800 4,8 1,8 RM1
RM900DB-90S 4500 900 6000 6400 4,2 0,9 RM3
RM200DG-130S 6500 200 10200 9600 4,0 1,0 RM4
RM400DG-130S * 6500 400 10200 under development
RM600DG-130S 6500 600 10200 4800 3,6 1,0 RM6

Caution:
* Under development

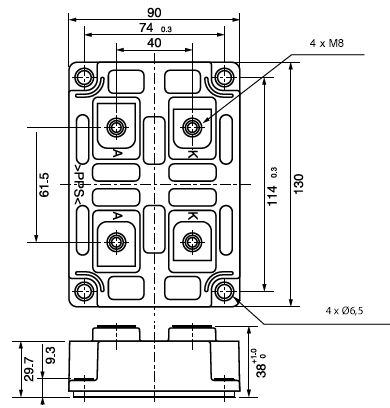

Casing - RM1
RM1800HE-34S, RM1200HE-66S, RM600HE-90S
Casing - RM3
RM400DY-66S, RM600DY-66S, RM1200DB-66S, RM900DB-90S
Casing - RM2
RM1200HA-50S, RM1200HA-66S
Casing - RM5
RM1200DG-66S
Casing - RM4
RM1200DB-34S, RM200DG-130S
Casing - RM6
RM600DG-130S, RM400DG-130S
