3684593 Horizontal front (v1), 8HP, Links
  • 3684593 Horizontal front (v1), 8HP, Links

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

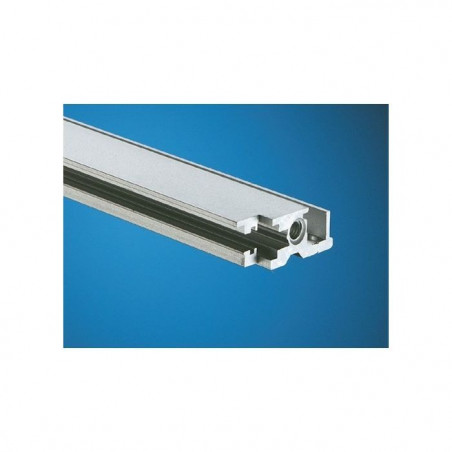

3684593 Horizontal front (v1), 8HP, Links

  • 3684593
  • Version Montaż na dole, z przesunięciem 1/2 HP
  • Packed after 1 część
To accommodate guide rails and for the attachment of front panels.
  • Front projection 2.5 mm corresponding to IEC 60 297-3
  • HP pitch pattern of holes for the precise installation of guide rails
  • M4 thread on end face
  • Straight-through core hole
  • Horizontal rail 192 HP without machining on the end faces. Suitable for cutting to length
Straight-through core hole for optional double screw fasteningMaterial: Extruded aluminum section Surface finish: Clear-chromated or anodized
