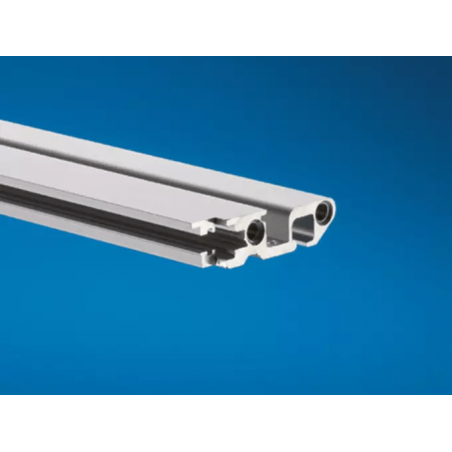

9921793 Horizontal front, with double screwing (V2), printed
  • 9921793 Horizontal front, with double screwing (V2), printed

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

9921793 Horizontal front, with double screwing (V2), printed

  • 9921793
  • Version z nadrukiem wzoru HP
  • Height (U) 6 U
  • to PCB depth 160 mm
  • Packed after 1 część
To accommodate guide rails and for the attachment of front panels. The double screw fastening ensures a high level of stability even under extreme loads.
  • Load test to DIN EN/IEC 61 587-1, requirement level SL1
  • Shock and vibration tests undertaken as per IEC 61 373 (DIN EN 50 155), Category 1, Class B
  • Front projection 2.5 mm corresponding to IEC 60 297-3-101
  • HP pitch pattern of holes for the precise installation of guide rails
  • M4 thread on end face
  • Straight-through core hole
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Version z nadrukiem wzoru HP
  • Height (U) 6 U
  • to PCB depth 160 mm
  • Packed after 1 część
To accommodate guide rails and for the attachment of front panels. The double screw fastening ensures a high level of stability even under extreme loads.
  • Load test to DIN EN/IEC 61 587-1, requirement level SL1
  • Shock and vibration tests undertaken as per IEC 61 373 (DIN EN 50 155), Category 1, Class B
  • Front projection 2.5 mm corresponding to IEC 60 297-3-101
  • HP pitch pattern of holes for the precise installation of guide rails
  • M4 thread on end face
  • Straight-through core hole
