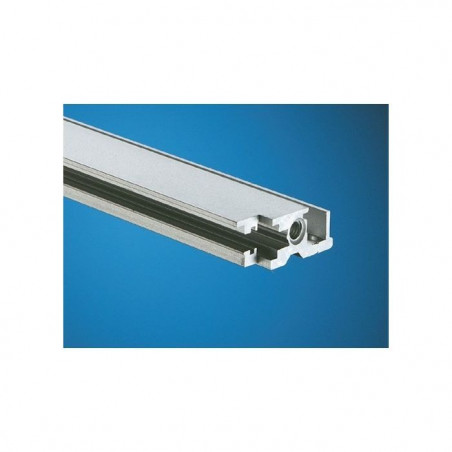

3684565 In front of the horizontal, top 10 mm (V-ext.1), 42 HP
  • 3684565 In front of the horizontal, top 10 mm (V-ext.1), 42 HP

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3684565 In front of the horizontal, top 10 mm (V-ext.1), 42 HP

  • 3684565
  • Version górny
  • Packed after 1 część
For type IV, IVs and VII injector/extractor handle
To accommodate guide rails and for the attachment of front panels.
  • Front projection and pitch pattern of holes based on IEEE 1101.10 and IEC 60 297-3-102
  • HP pitch pattern of holes for the precise installation of guide rails
  • M4 thread on end face
  • Straight-through core hole
  • Horizontal rail 192 HP without machining on the end faces. Suitable for cutting to length
Material: Extruded aluminum section
Surface finish: Clear-chromated or anodized
Less
