Manufacturer: HEITEC AG

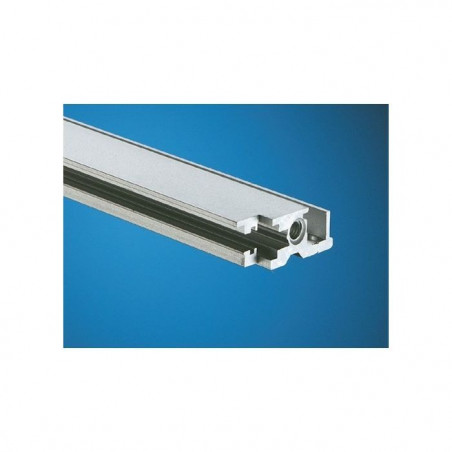

3684961 Horizontal front rails, top 10 mm (V-EXT.1) 40 HP

  • 3684961
  • Height (U) 3 U
  • Width (HP) 14 HP
  • Packed after 1 część
For type IV, IVs and VII injector/extractor handle
To accommodate guide rails and for the attachment of front panels.
  • Front projection and pitch pattern of holes based on IEEE 1101.10 and IEC 60 297-3-102
  • HP pitch pattern of holes for the precise installation of guide rails
  • M4 thread on end face
  • Straight-through core hole
  • Horizontal rail 192 HP without machining on the end faces. Suitable for cutting to length
Material: Extruded aluminum section
Surface finish: Clear-chromated or anodized
