Manufacturer: CAMDENBOSS

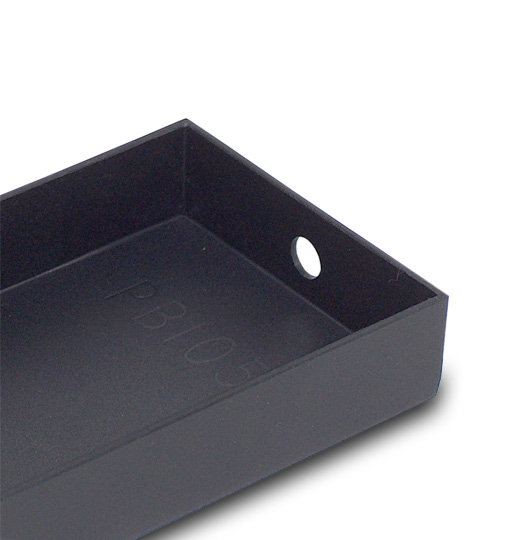

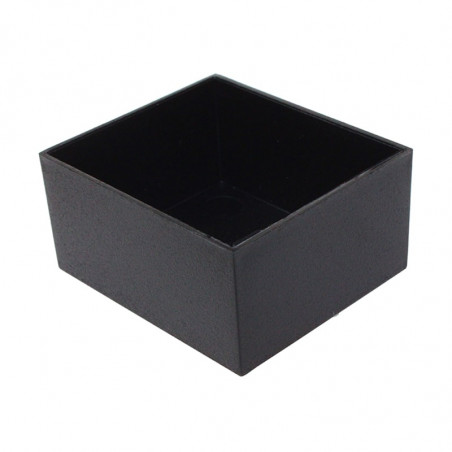

Housing for pouring series 100

  • Encapsulate and protect electronic components
  • Moulded in ABS
  • Highly resistant to most chemicals
  • High rigidity and impact strength
  • Compliant with water absorption specifications to DIN53495


Specification

  • Materials: ABS UL94-HB as standard, UL94-V0 to order
  • Operating temperature: -20°C to + 80°C
  • Standard colours: black

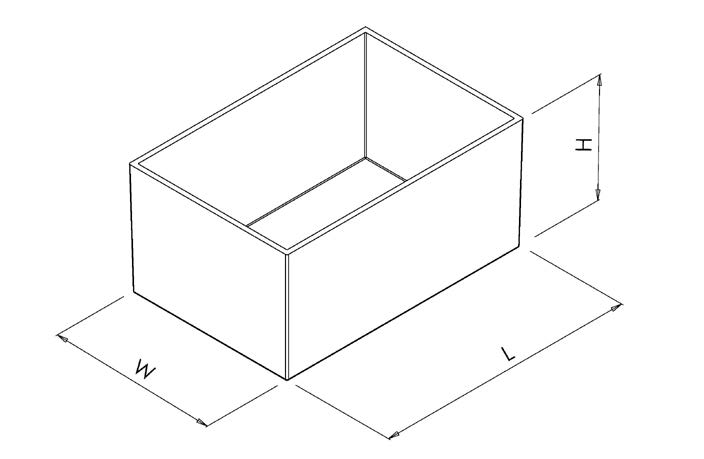

Symbol Lenght Width Height Wall thickness
RTM101-BLK 25mm 20mm 15mm 1mm
RTM102-BLK 30mm 20mm 15mm 1mm
RTM103-BLK 40mm 35mm 20mm 1mm
RTM104-BLK 50mm 40mm 30mm 1mm
RTM105-BLK 75mm 50mm 35mm 1.4mm
RTM106-BLK 100mm 60mm 25mm 1.5mm
RTM107-BLK 40mm 40mm 20mm 1mm
RTM108-BLK 50mm 50mm 30mm 1mm
RTM109-BLK 11mm 11mm 9mm 0.5mm
RTM110-BLK 22mm 14mm 9mm 0.5mm
RTM111-BLK 30mm 30mm 20mm 1mm
RTM112-BLK 25mm 25mm 25mm 1mm
RTM113-BLK 40mm 40mm 30mm 1mm
RTM114-BLK 75mm 75mm 40mm 1mm
RTM115-BLK 89mm 64mm 33mm 1.5mm
RTM116-BLK 100mm 50mm 25mm 1.3mm
