TT-SX 9001 differential probe
  • TT-SX 9001 differential probe

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: OMICRON Lab

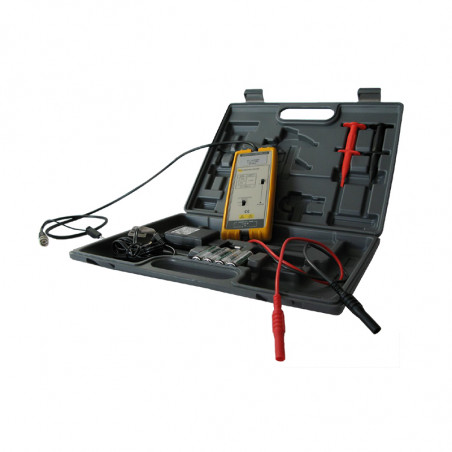

TT-SX 9001 differential probe

With differential probes, it is possible to apply voltages up to 700V to the measurement inputs of the Bode 100. When the probe's measurement input is floating, it is possible to perform measurements on circuits that are not directly connected to ground.



Main Features

  • Measurements on circuits with voltages up to 700VRMS
  • Avoids grounding issues
  • Category III inputs up to 1000V
  • CE compliant
  • Powered by power supply or batteries



Specifications

Parameter New Value (Good)
Bandwidth DC…30MHz(-3dB)
Input Impedance 5MΩ, 2pF
Voltage Swings ±7V (1MΩ load)
Attenuation Factor -72dB at 50Hz, -66dB at 20kHz, -56dB at 200kHz
Humidity ≤80% RH at 25 to 35°C
Power Supply Output Voltage and Current 5V DC / 1A
Weight 500g (with batteries and rubber case)
Dimensions 220x68x28mm (with rubber case)
Offset ±20mV
Power Supply Input Voltage and Current 100-240V AC / 0.35A
Input Cable Length (each) 55cm ±3cm
BNC Cable Length 95cm ±3cm
USB Type-C Cable Length 100cm ±3cm
Altitude Operating: 2000m
Non-operating: 15000m
Pollution Degree 2
Less
Read more

Send an inquiry
