Photos are for informational purposes only. View product specification
please use latin characters
Type | Maximum parameters | Vce(sat) @ Tj=25°C [V] | Package | ||
---|---|---|---|---|---|
Vces [V] | Ic [A] | Pt [W] | |||
600V | |||||

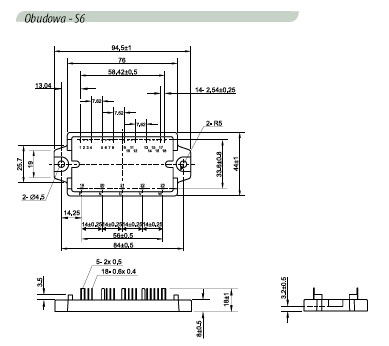

PM10CSJ060 | 600 | 10 | 39 | 1/8 | S6 |
PM15CSJ060 | 600 | 15 | 43 | 1/8 | S6 |
PM20CSJ060 | 600 | 20 | 56 | 1/8 | S6 |
PM30CSJ060 | 600 | 30 | 83 | 1/8 | S6 |

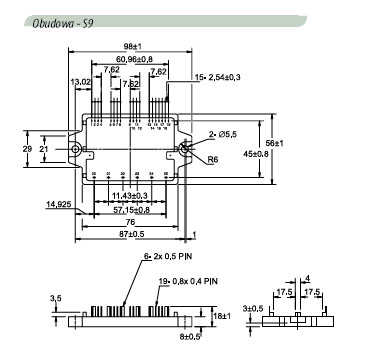

PM30RSF060 | 600 | 30 | 83 | 1/8 | S9 |

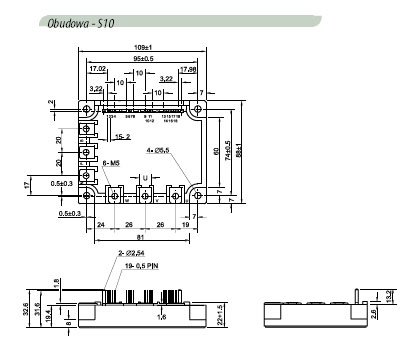

PM50RSA060 | 600 | 50 | 138 | 1/8 | SIO |
PM50RSK060 | 600 | 50 | 100 | 1/8 | S11 |
PM75RSA060 | 600 | 75 | 312 | 1/8 | SIO |

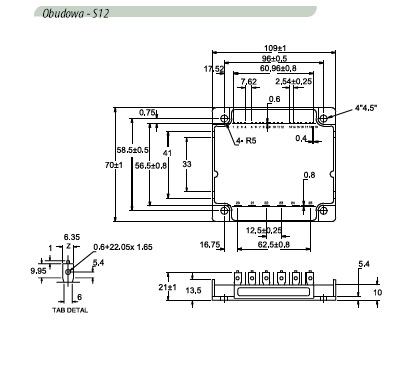

PM75RSK060 | 600 | 75 | 125 | 1/8 | S12 |

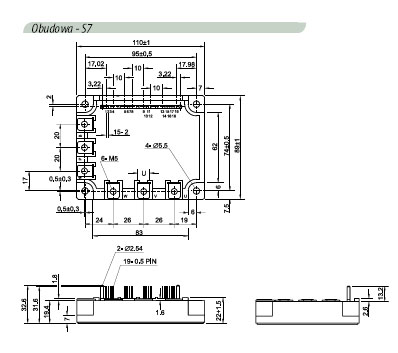

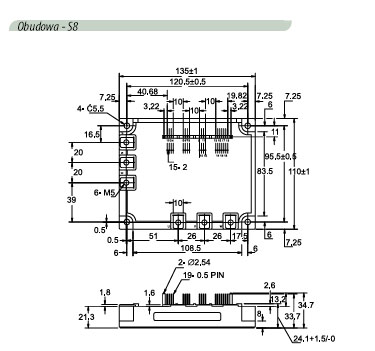

PM100CSA060 | 600 | 100 | 403 | 1/8 | S7 |
PM100RSA060 | 600 | 100 | 403 | 1/8 | S7 |
PM150CSA060 | 600 | 150 | 500 | 1/8 | S7 |
PM150RSA060 | 600 | 150 | 500 | 1/8 | S7 |
PM200CSA060 | 600 | 200 | 595 | 1/8 | S8 |
PM200DSA060 | 600 | 200 | 595 | 1/8 | S2 |

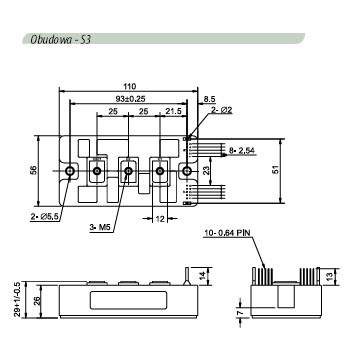

PM300DSA060 | 600 | 300 | 960 | 1/8 | S3 |

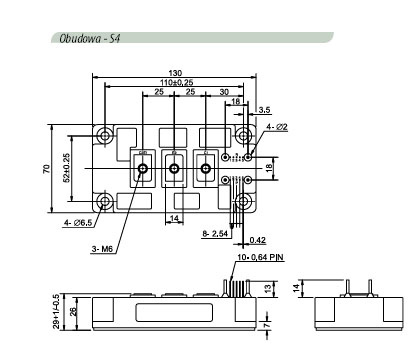

PM400DSA060 | 600 | 400 | 1140 | 1/8 | S4 |

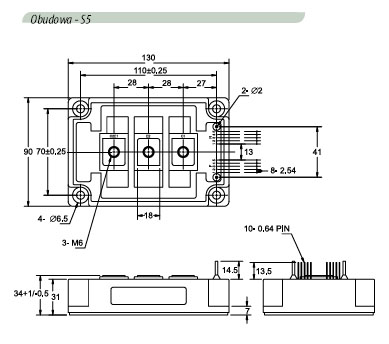

PM600DSA060 | 600 | 600 | 1790 | 1/8 | S5 |

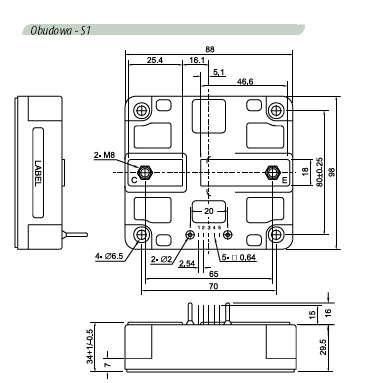

PM800HSA060 | 600 | 800 | 2100 | 2 | S1 |
1200V | |||||

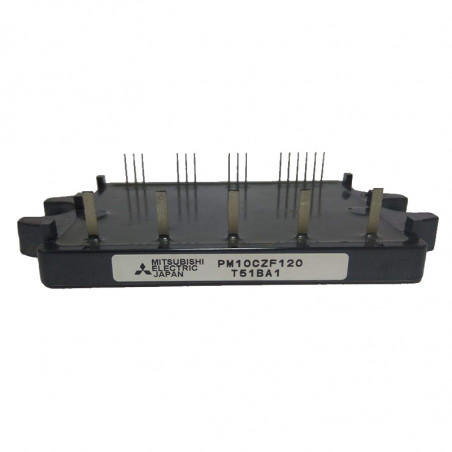

PM10CZF120 | 1200 | 10 | 62 | 2,7 | S16 |

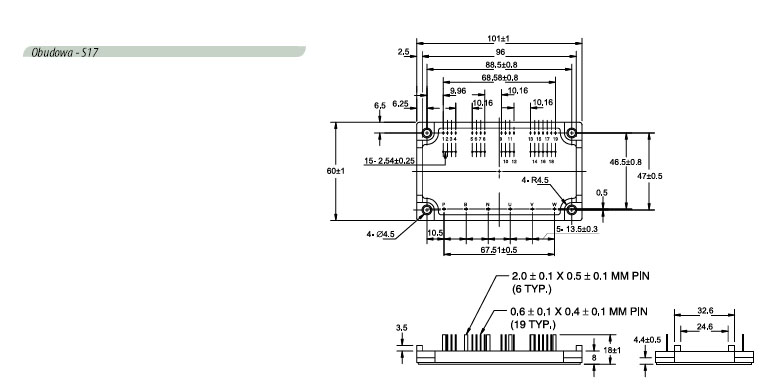

PM10RSH120 | 1200 | 10 | 62 | 2,3 | SI 7 |
PM15CZF120 | 1200 | 15 | 83 | 2,7 | S16 |
PM15RSH120 | 1200 | 15 | 83 | 2,3 | SI 7 |
PM25RSB120 | 1200 | 25 | 132 | 2,5 | S18 |
PM25RSK120 | 1200 | 25 | 100 | 2,5 | S19 |
PM50RSA120 | 1200 | 50 | 347 | 2,5 | S7 |
PM75CSA120 | 1200 | 75 | 500 | 2,5 | S7 |
PM75DSA120 | 1200 | 75 | 460 | 2,3 | S2 |
PM100CSA120 | 1200 | 100 | 595 | 2,5 | S8 |
PM100DSA120 | 1200 | 100 | 595 | 2,3 | S2 |
PM150DSA120 | 1200 | 150 | 960 | 2,3 | S3 |
PM200DSA120 | 1200 | 200 | 1140 | 2,3 | S4 |
PM300DSA120 | 1200 | 300 | 1790 | 2,3 | S5 |

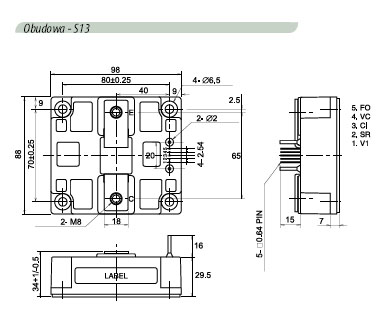

PM400HSA120 | 1200 | 400 | 2315 | 2,3 | S13 |

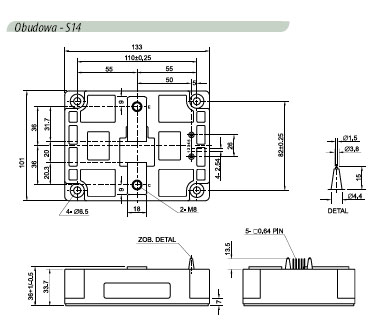

PM600HSA120 | 1200 | 600 | 3470 | 2,3 | S14 |

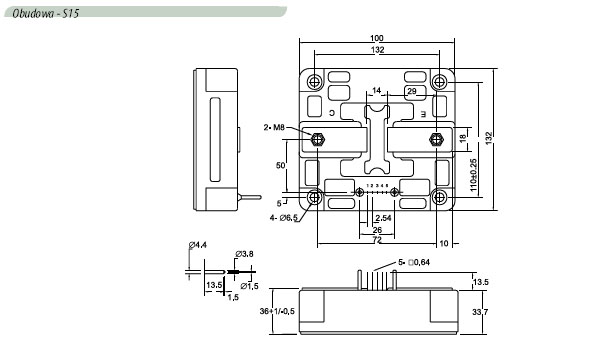

PM800HSA120 | 1200 | 800 | 4630 | 2,5 | S15 |
OC - over-current prot.
overload protection
SC - short-circuit prot.
short-circuit protection
OT - over-temp. prot.
temperature protection
UV - under-voltage lock prot.
under-voltage protection
Symbol | Internal functions |
---|---|
H | 1 IGBT transistor with control and OC/UV protection |
D | IGBT half-bridge with control and OC/OT/UV protection |
C | 3-phase IGBT system with control and OC/SC/OT/UV protection |
R | 3-phase IGBT system with control, brake and OC/SC/OT/UV protection |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | ![]() |
![]() | |
![]() | |
![]() | |
![]() | |
![]() |
