4th generation of IGBT TRENCH modules - F series
  • 4th generation of IGBT TRENCH modules - F series

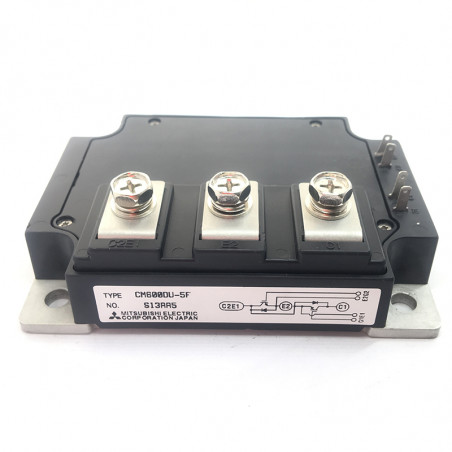

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Mitsubishi

4th generation of IGBT TRENCH modules - F series

TypeMaximum parametersVce(sat)
@ Tj=25°C
[V]
Casing
Vces
[V]
Ic
[A]
Pt
[W]
250V
CM400DU-5F 250 400 890 1/2 F2
CM450HA-5F 250 450 735 1/2 F3
CM600DU-5F 250 600 1100 1/2 F4
CM600HA-5F 250 600 960 1/2 F5
600V
CM75DU-12F 600 75 290 1/6 F7
CM75TU-12F 600 75 290 1/6 F8
CM100DU-12F 600 100 350 1/6 F7
CM100TJ-12F 600 100 290 1/6 F11
CM100TU-12F 600 100 350 1/6 F8
CM150DU-12F 600 150 520 1/6 F7
CM150TJ-12F 600 150 403 1/6 F11
CM150TU-12F 600 150 520 1/6 F1
CM200DU-12F 600 200 590 1/6 F7
CM200TU-12F 600 200 590 1/6 F1
CM300DU-12F 600 300 780 1/6 F2
CM400DU-12F 600 400 960 1/6 F2
CM600HU-12F 600 600 1420 1/6 F6
1200V
CM50DU-24F 1200 50 320 1/8 F7
CM50TJ-24F 1200 50 219 1/8 F11
CM50TU-24F 1200 50 320 1/8 F8
CM75DU-24F 1200 75 450 1/8 F7
CM75TJ-24F 1200 75 357 1/8 F11
CM75TU-24F 1200 75 450 1/8 F1
CM100DU-24F 1200 100 500 1/8 F7
CM100TJ-24F 1200 100 390 1/8 F11
CM100TU-24F 1200 100 500 1/8 F1
CM150DU-24F 1200 150 600 1/8 F2
CM200DU-24F 1200 200 830 1/8 F2
CM300DU-24F 1200 300 960 1/8 F4
CM400DU-24F 1200 400 1100 1/8 F10
CM400HU-24F 1200 400 1600 1/8 F6
CM600DU-24F 1200 600 1540 1,95 F10
CM600HU-24F 1200 600 1900 1/8 F9

CM100TU-24F, CM150TU-12F, CM200TU-12F, CM75TU-24F CM450HA-5F
CM600HA-5F CM100DU-12F, CM100DU-24F, CM150DU-12F, CM200DU-12F, CM50DU-24F, CM75DU-12F, CM75DU-24F
CM600HU-24F CM150DU-24F, CM200DU-24F, CM300DU-12F, CM400DU-12F, CM400DU-5F
CM300DU-24F, CM600DU-5F CM400HU-24F, CM600HU-12F
CM100TU-12F, CM50TU-24F, CM75TU-12F CM400DU-24F, CM600DU-24F
CM100TJ-12F, CM100TJ-24F, CM150TJ-12F, CM50TJ-24F, CM75TJ-24F
