Housing for pouring 500 series
  • Housing for pouring 500 series
  • Housing for pouring 500 series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: CAMDENBOSS

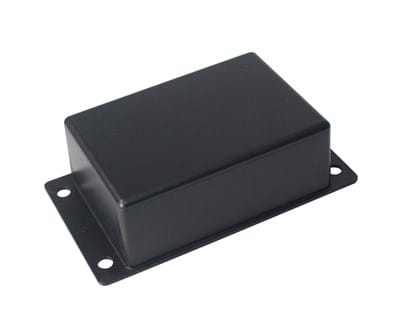

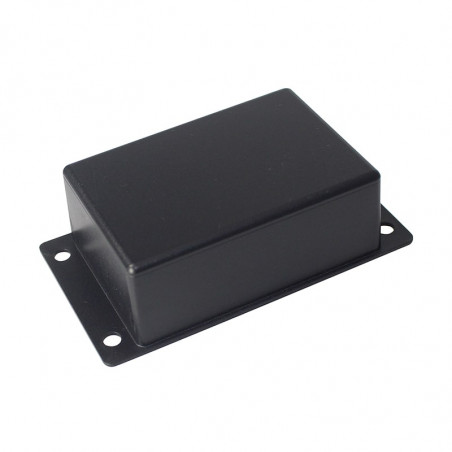

Housing for pouring 500 series

  • Moulded in ABS UL94-HB
  • Flush-fitting lid mounted by 4x fixing screws
  • Lugs provide added security once mounted by restricting access
  • Flanged body with 4x mounting holes
  • Ideal for partial or complete potting
  • Compliant with water absorption specifications to DIN53495
  • High-rigidity and impact strength
  • Highly resistant to most chemicals


Specification

  • Materials: ABS UL94-HB as standard, UL94-V0 to order
  • Operating temperature: -20°C to + 80°C
  • Standard colours: black









Symbol Lenght Width Height Wall thickness
RX505A 36mm 56mm 26mm 17mm
RX506A 42mm 62mm 30mm 19mm
RX507A 48mm 68mm 34mm 21mm
RX508A 56mm 76mm 40mm 24mm
RX509A 66mm 86mm 46mm 26mm
RX510A 76mm 96mm 52mm 29mm
