Newest generation IGBT modules with CSTBT structure (Carrier Stored Trench Bipolar Transistor), have very low switching and conducting power losses which allow to use them in fast applications(~50kHz).
Type | Maximal parameters | Vce(sat) | td(on) (ns) |
IGBT Rth(j-c) (°C/W) |
Diode R th(j-c) (°C/W) |

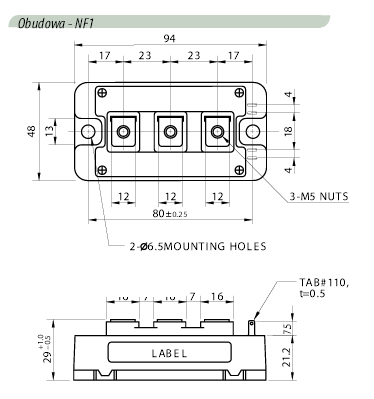

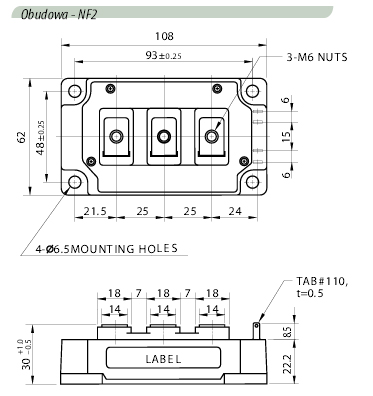

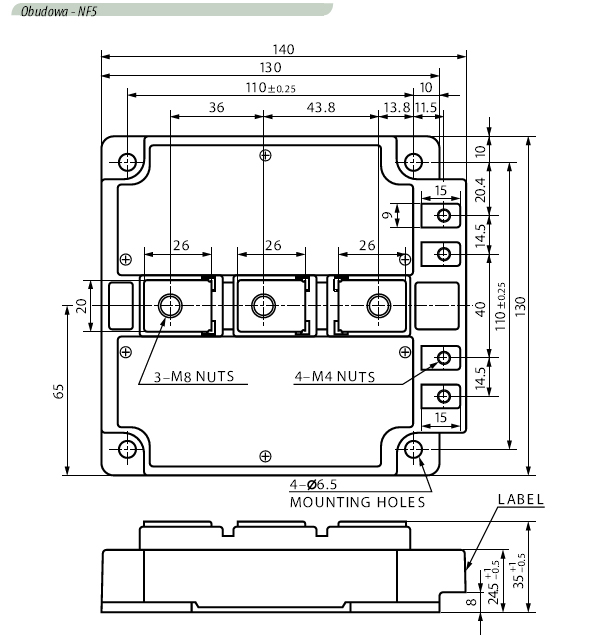

Casing | |
---|---|---|---|---|---|---|---|
Vces [V] |
Ic [A] |
@ Tj=25°C [V] |
|||||

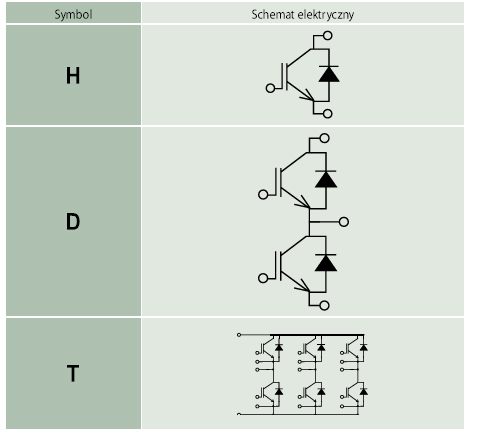

600 V (half-bridge) | |||||||
CM150DY-12NF | 600 | 150 | 1,7 | 100 | 0.21 | 0.47 | NF1 |
CM200DY-12NF | 600 | 200 | 1,7 | 120 | 0.19 | 0.35 | NF1 |
CM300DY-12NF | 600 | 300 | 1,7 | 120 | 0.16 | 0.25 | NF1 |
CM400DY-12NF | 600 | 400 | 1,7 | 200 | 0.11 | 0.19 | NF2 |
CM600DY-12NF | 600 | 600 | 1,7 | 300 | 0.11 | 0.18 | NF3 |
600V (3-phase bridge) | |||||||
CM75TL-12NF | 600 | 75 | 1.7 | 100 | 0.29 | 0.51 | NF4 |
CM100TL-12NF | 600 | 100 | 1.7 | 100 | 0.23 | 0.41 | NF4 |
CM150TL-12NF | 600 | 150 | 1.7 | 100 | 0.17 | 0.31 | NF4 |
CM200TL-12NF | 600 | 200 | 1.7 | 100 | 0.14 | 0.22 | NF5 |
600V (3-phase bridge + chopper) | |||||||
CM75RL-12NF | 600 | 75 | 1.7 | 100 | 0.29 | 0.51 | NF4 |
CM100RL-12NF | 600 | 100 | 1.7 | 100 | 0.23 | 0.41 | NF4 |
CM150RL-12NF | 600 | 150 | 1.7 | 100 | 0.17 | 0.31 | NF4 |
CM200RL-12NF | 600 | 200 | 1.7 | 100 | 0.14 | 0.22 | NF5 |
Typ | Maximal parameters | Vce(sat) | IGBT Rth(j-c) (°C/W) |
Diode R th(j-c) (°C/W) |
Casing | |
---|---|---|---|---|---|---|
Vces [V] |
Ic [A] |
@ Tj=25°C [V] |
||||
1200V (half-bridge) | ||||||
CM75DY-24NF | 1200 | 75 | 1.8 | 0.290 | 0.470 | NF1 |
CM100DY-24NF | 1200 | 100 | 1.8 | 0.190 | 0.350 | NF1 |
CM150DY-24NF | 1200 | 150 | 1.8 | 0.160 | 0.250 | NF1 |
CM200DY-24NF | 1200 | 200 | 1.8 | 0.110 | 0.190 | NF2 |
CM300DY-24NF | 1200 | 300 | 1.8 | 0.110 | 0.180 | NF3 |
CM400DY-24NF | 1200 | 400 | 1.8 | 0.085 | 0.150 | NF3 |
CM600DU-24NF | 1200 | 600 | 1.95 | 0.060 | 0.110 | NF6 |
CM900DU-24NF | 1200 | 900 | 1.8 | 0.049 | 0.078 | NF7 |
CM1400DU-24NF | 1200 | 1400 | 1.8 | 0.032 | 0.053 | NF7 |
1200V (3-phase bridge) | ||||||
CM50TL-24NF | 1200 | 50 | 2.1 | 0.32 | 0.43 | NF4 |
CM75TL-24NF | 1200 | 75 | 2.1 | 0.24 | 0.36 | NF4 |
CM100TL-24NF | 1200 | 100 | 2.1 | 0.20 | 0.28 | NF4 |
CM150TL-24NF | 1200 | 150 | 2.1 | 0.14 | 0.23 | NF5 |
CM200TL-24NF | 1200 | 200 | 2.1 | 0.11 | 0.17 | NF5 |
1200V (3-phase bridge + chopper) | ||||||
CM50RL-24NF | 1200 | 50 | 2.1 | 0.32 | 0.43 | NF4 |
CM75RL-24NF | 1200 | 75 | 2.1 | 0.24 | 0.36 | NF4 |
CM100RL-24NF | 1200 | 100 | 2.1 | 0.20 | 0.28 | NF4 |
CM150RL-24NF | 1200 | 150 | 2.1 | 0.14 | 0.23 | NF5 |
CM200RL-24NF | 1200 | 200 | 2.1 | 0.11 | 0.17 | NF5 |
1700V (half-bridge) | ||||||
CM1000DU-34NF | 1700 | 1000 | 2.2 | 0.014 | 0.023 | MPD1 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
