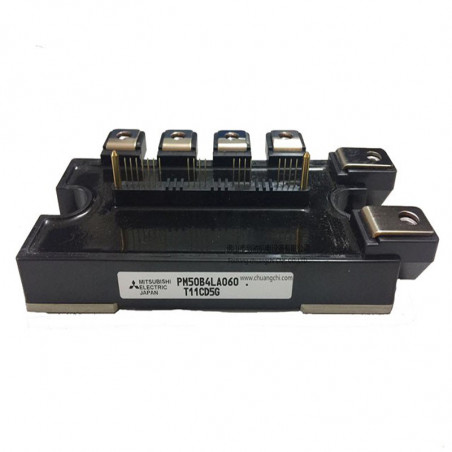

![5th generation of IPM modules - for usage in converters and solar batteries 5th generation of IPM modules - for usage in converters and solar batteries](https://www.dacpol.eu/6331-large_default/5th-generation-of-ipm-modules-for-usage-in-converters-and-solar-batteries.jpg)
![5th generation of IPM modules - for usage in converters and solar batteries 5th generation of IPM modules - for usage in converters and solar batteries](https://www.dacpol.eu/6331-large_default/5th-generation-of-ipm-modules-for-usage-in-converters-and-solar-batteries.jpg)
Photos are for informational purposes only. View product specification
please use latin characters
Type | Maximum parameters | VCE(sat) | Configuration | Casing | |
---|---|---|---|---|---|
VCES [V] | Ic [A] | Tj =25°C [V] | |||
PM50B4LA060 | 600 | 50 | 1,55 | 1 inverter | L1 screw |
PM50B4LB060 | 600 | 50 | 1,55 | 1 inverter | L2 PINY |
PM50B5LA060 | 600 | 50 | 1,55 | 1 inverter + 1 chopper | L1 screw |
PM50B5LB060 | 600 | 50 | 1,55 | 1 inverter + 1 chopper | L2 PINY |
PM50B6LA060 | 50 | 1,55 | 1 inverter + 2 choppers | L1 screw | |
PM50B6LB060 | 600 | 50 | 1,55 | 1 inverter + 2 choppers | L2 PINY |
PM75B4LA060 | 600 | 75 | 1,55 | 1 inverter | L1 screw |
PM75B4LB060 | 600 | 75 | 1,55 | 1 inverter | L2 PINY |
PM75B5LA060 | 600 | 75 | 1,55 | 1 inverter + 1 chopper | L1 screw |
PM75B5LB060 | 600 | 75 | 1,55 | 1 inverter + 1 chopper | L2 PINY |
PM75B6LA060 | 600 | 75 | 1,55 | 1 inverter + 2 choppers | L1 screw |
PM75B6LB060 | 600 | 75 | 1,55 | 1 inverter + 2 choppers | L2 PINY |
![]() |
![]() |
Availability: Please be advised that this product is out of stock
You can place a pre-order, report your interest in the product by clicking the "Ask for availability" button.
Type | Maximum parameters | VCE(sat) | Configuration | Casing | |
---|---|---|---|---|---|
VCES [V] | Ic [A] | Tj =25°C [V] | |||
PM50B4LA060 | 600 | 50 | 1,55 | 1 inverter | L1 screw |
PM50B4LB060 | 600 | 50 | 1,55 | 1 inverter | L2 PINY |
PM50B5LA060 | 600 | 50 | 1,55 | 1 inverter + 1 chopper | L1 screw |
PM50B5LB060 | 600 | 50 | 1,55 | 1 inverter + 1 chopper | L2 PINY |
PM50B6LA060 | 50 | 1,55 | 1 inverter + 2 choppers | L1 screw | |
PM50B6LB060 | 600 | 50 | 1,55 | 1 inverter + 2 choppers | L2 PINY |
PM75B4LA060 | 600 | 75 | 1,55 | 1 inverter | L1 screw |
PM75B4LB060 | 600 | 75 | 1,55 | 1 inverter | L2 PINY |
PM75B5LA060 | 600 | 75 | 1,55 | 1 inverter + 1 chopper | L1 screw |
PM75B5LB060 | 600 | 75 | 1,55 | 1 inverter + 1 chopper | L2 PINY |
PM75B6LA060 | 600 | 75 | 1,55 | 1 inverter + 2 choppers | L1 screw |
PM75B6LB060 | 600 | 75 | 1,55 | 1 inverter + 2 choppers | L2 PINY |
![]() |
![]() |
