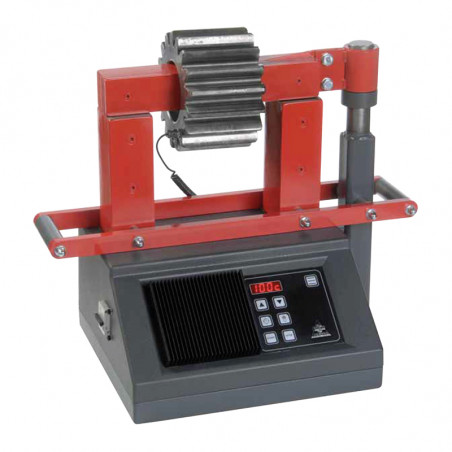

Induction heater 38 ESD 8 KVA
  • Induction heater 38 ESD 8 KVA

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Bega Special Tools

Induction heater 38 ESD 8 KVA

Specifications

Type BETEX

38 ESD
Facility power 8 kVA
Voltage/Amp* 400/500V
20A
Frequenz Hz 50/60Hz
Yokes, standard mm/ set 1 30,70
Yokes, standard mm/ set 2 20,30,70
Swivel arm yes
Max. weight. ± kg - bearings 125
- other parts 75
Min. ID Ø: mm 30/Ø115
Max. OD Ø :mm*A 480/720 *1
Max. width: mm *B 200
Max. widthd at *C
horizontal heating: mm		 180
Cross section poles mm *D 70
Pole height mm 210
Temperature control
ºC/ F		 - max reach* 240ºC*2
- magnetic probe yes
- digital display yes
Time control - max. reach 0-60 min.
- digital display yes
Sound signal yes
Error report yes
Temperature hold yes
Automatic power reduction yes
Automatic demagnetising,<2A/cm yes
Thermal safety guard yes
Support for horizontal heating yes
Dimensions mm (lxbxh) 630x365x470
Weight heater kg
excl. Yokes		 53
Electric crane for yokes -
Alarm signal optional
Mobile -



*1 With adaptor yokes, only available for the Standard models
*2 On request: 350ºC with heavy duty sensor and extra isolation

Heating times are subject to the relationship between:
• Min. bore and max. outside diameter, width, weight
• Required temperature and material type
• Available power
