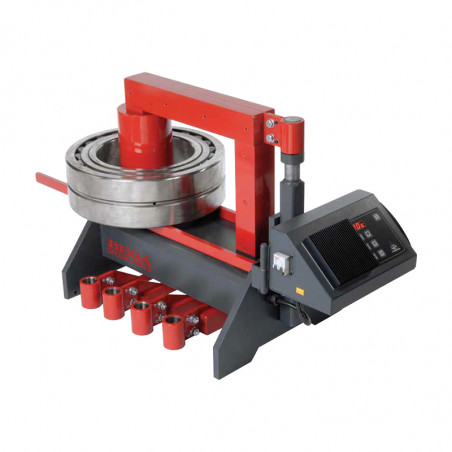

Induction heater 40 RSD EN RSDM Portable Turbo 8 KVA
  • Induction heater 40 RSD EN RSDM Portable Turbo 8 KVA

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Bega Special Tools

Induction heater 40 RSD EN RSDM Portable Turbo 8 KVA

Specifications

Type BETEX

40 RSD en RSDm (mobile)
TURBO
Facility power 8 kVA
Voltage/Amp* 400/500V
20A
Frequenz Hz 50/60Hz
Yokes, standard mm/ set 1 optional
Yokes, standard mm/ set 2 20,30,40,60,80
Swivel arm yes
Max. weight. ± kg - bearings 350
- other parts 250
Min. ID Ø: mm 30/Ø155
Max. OD Ø :mm*A 790
Max. width: mm *B 315
Max. widthd at *C
horizontal heating: mm		 280
Cross section poles mm *D 80/Ø153
Pole height mm 320
Temperature control
ºC/ F		 - max reach* 240ºC*2
- magnetic probe yes
- digital display yes
Time control - max. reach 0-60 min.
- digital display yes
Sound signal yes
Error report yes
Temperature hold yes
Automatic power reduction yes
Automatic demagnetising,<2A/cm yes
Thermal safety guard yes
Support for horizontal heating yes
Dimensions mm (lxbxh) 1200x640x1000
Weight heater kg
excl. Yokes		 65/105
Electric crane for yokes -
Alarm signal optional
Mobile yes (40RSDm)

*2 On request: 350ºC with heavy duty sensor and extra isolation

Heating times are subject to the relationship between:
• Min. bore and max. outside diameter, width, weight
• Required temperature and material type
• Available power

Nagrzewnica indukcyjna 40 RSD en RSDm przenośna TURBO 8 kVA
