Manufacturer: Kistler

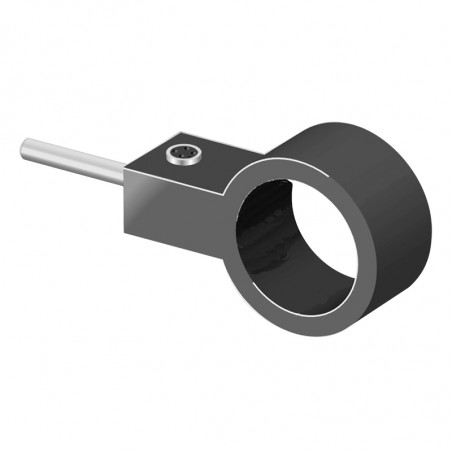

Inductive ring sensors - IRS series

Technical data

Supply voltage: 12...24V
Current consumption: approx. 50mA
Operation mode: dynamic
Sensitivity: regulated
Output: PNP + NPN
Output current: 100mA, short circuit protection
Switching frequency: max 200Hz
Operation temperature: 0...60°C
EMC IEC 801.... CE
Protection degree: IP65
Accuracy: hole diameter A: 40-84- 155mm
ball-ø: 1- 1,5-4,5mm

Dimensions [mm]

Sensor IRS 40 IRS 84 IRS 155
A 40 84 155
B 80 120 200
C 40 60 60
D 125 157 237
E 70 70 90
Tube ST 40 ST84 ST 155
L ~200 ~250 ~300

INDUKCYJNE CZUJNIKI PIERŚCIENIOWE SERII IRS

Order table

Catalogue number Ring sensor Terminals description - 4-pole M12 socket
8907-41000-1001 IRS-40/4-P+N INDUKCYJNE CZUJNIKI PIERŚCIENIOWE SERII IRS opis wyprowadzeń
8907-41000-2001 IRS-84/4-P+N
8907-41000-3001 IRS-155/4-P+N
