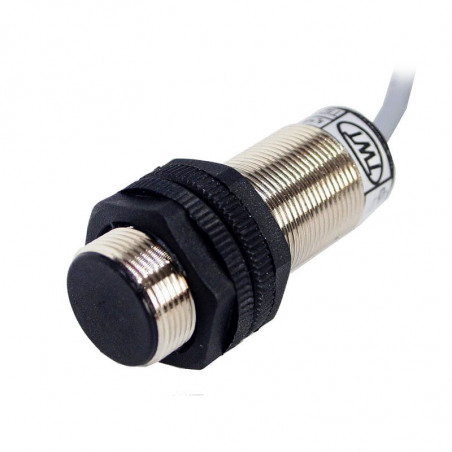

Inductive sensors TCR, DC,3 wires
  • Inductive sensors TCR, DC,3 wires

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TWT

Inductive sensors TCR, DC,3 wires

Technical data

Supply voltage 10...48V DC
Supply voltage ripple ≤ 3,5V
Load current 200mA
Power consumption without control 12mA
Residual voltage 6,8kW
Max load current 0,8...1,8V DC
Operation temperature -25°C ...70°C
Protection degree IP 67
Casing nickled brass
Double signalisation LED
Protection current and overvoltage outputs
Weight 0,3kg
Vibrations t ≤ 55Hz, amax= 1mm
Shocks bmax ≤ 30g, t = 11m/s

Metal casing M30x1,5 M30x1,5 M30x1,5 M30x1,5
Assembly method Build in Build in Not build in Not build in
Normal operation distance 10mm 10mm 15mm 15mm
Operation distance 0 ... 8mm 0 ... 8mm 0 ... 12mm 0 ... 12mm
Dimensions [mm] TCR, DC,3 PRZEWODY TCR, DC,3 PRZEWODY TCR, DC,3 PRZEWODY TCR, DC,3 PRZEWODY
Edge frequency 6...150 imp/min 120...3000 imp/min 6...150 imp/min 120...3000 imp/min
Edge frequency range control tak tak tak tak
Frequency hysteresis 5 ... 10% fpr 5 ... 10% fpr 5 ... 10% fpr 5 ... 10% fpr
Repeatability edge frequencies ≤ 3%fpr ≤ 3%fpr ≤ 3%fpr ≤ 3%fpr
Max switching frequency 30000imp/min 30000imp/min 20000imp/min 20000imp/min
Supply and metal nearby signalisation LED green LED green LED green LED green
Frequency limit overflow signalisation LED yellow LED yellow LED yellow LED yellow
Connection cable PCW 3 x 0,5mm cable PCW 3 x 0,5mm2 cable PCW x 0,5mm2 cable PCW 3 x 0,5mm2
Sensor marking PNP _/_ TCR3010ZP1 TCR3010ZP2 TCR3015ZP1 TCR3015ZP2
Sensor marking PNP _/|_   TCR3010RP1 TCR3010RP2 TCR3015RP1 TCR3015RP2
Sensor marking NPN  _/_ TCR3010ZN1 TCR3010ZN2 TCR3015ZN1 TCR3015ZN2
Sensor marking NPN   _/|_ TCR3010RN1 TCR3010RN2 TCR3015RN1 TCR3015RN2

TCR, DC,3 PRZEWODY podłączenie TCR, DC,3 PRZEWODY podłączenie TCR, DC,3 PRZEWODY podłączenie TCR, DC,3 PRZEWODY podłączenie
