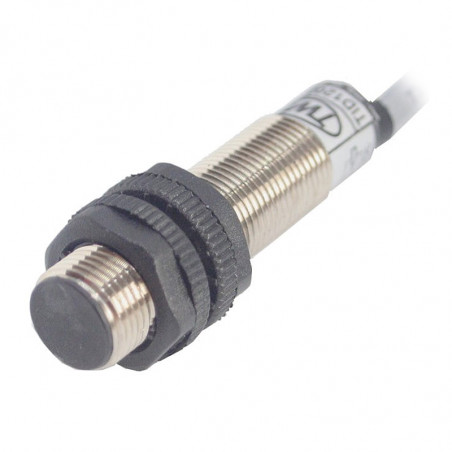

Inductive sensors TID DC 4 wires
  • Inductive sensors TID DC 4 wires

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TWT

Inductive sensors TID DC 4 wires

Properties
• 4 wire output NO/NC
• Metal casing
• 10 - 30V DC (10 - 60V DC)*, 200mA (400mA)*
• current and overvoltage outputs protection
• LED Signalisation
• Protection degree IP67
Specification
Supply voltage
10-30V DC (10-60V DC)*
Supply voltage ripple
≤ 3,5V
Load current
200mA (400mA)*
Power consumption without control
12mA
Residual voltage
0,8-1,8V DC
Residual current
<10μA
Output resistance
6,8kΩ
Switching hysteresis
< 15%
Repeatability
< 10%Sn
Temperature coefficient
< 10%
Operation temperature
-25°C - +70°C
Protection degree
IP 67
Casing
nickled brass

Metal casing M12x1 M12x1 M18x1 M18x1 M30x1,5 M30x1,5
Assembly method Build in Not build in Build in Not build in Build in Not build in
Normal operation distance 2mm 4mm 5mm 8mm 10mm 15mm
Operation distance 0 - 1,6mm 0 - 3,2mm 0 - 4mm 0 - 6,4mm 0 - 8mm 0 - 12mm

Supply voltage 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC*
Load current 200mA* 200mA* 200mA* 200mA* 200mA* 200mA*
Switching frequency 1000Hz 500Hz 500Hz 300Hz 300Hz 200Hz
Connection PCW cable
2mb
2 x 0,34mm2		 PCW cable
2mb
2 x 0,34mm2		 PCW cable
2mb
2 x 0,34mm2		 PCW cable 2mb
2 x 0,34mm2		 PCW cable
2mb
2 x 0,34mm2		 PCW cable 2mb
2 x 0,34mm2
Weight 0,05kg 0,05kg 0,08kg 0,08kg 0,12kg 0,12kg
Sensor marking TID1202P
TID1202N		 TID1204P
TID1204N		 TID1805P
TID1805N		 TID1808P
TID1808N		 TID3010P
TID3010N		 TID3015P
TID3015N


Metal casing M12x1 M12x1 M18x1 M18x1 M30x1,5 M30x1,5
Assembly method Build in Not build in Build in Not build in Build in Not build in
Normal operation distance 2mm 4mm 5mm 8mm lOmm 15mm
Operation distance 0 - 1,6mm 0 - 3,2mm 0 - 4mm 0 - 6,4mm 0 - 8mm 0 - 12mm

Supply voltage 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC* 10 - 30 V DC*
Load current 200mA* 200mA* 200mA* 200mA* 200mA* 200mA*
Switching frequency 1000Hz 500Hz 500Hz 300Hz 300Hz 200Hz
Connection connector M12 connector M12 connector M12 connector M12 connector M12 connector M12
Weight 0,05kg 0,05kg 0,08kg 0,08kg 0,12kg 0,12kg
Sensor marking TID1202PK
TID1202NK		 TID1204PK TID1204NK TID1805PK TID1805NK TID1808PK TID1808NK TID3010PK
TID3010NK		 TID3015PK
TID3015NK



M12 in sensor

Connection
1 10-30V DC brown
2 wy NC white
3 0V DC blue
4 wy NO black



Less
Read more
