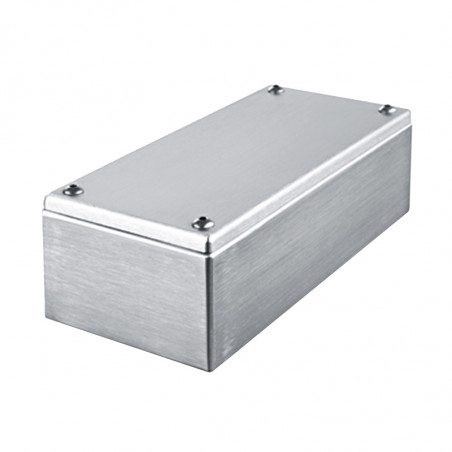

Inocase IP66 / IP67 series - housing / stainless steel terminal boxes / installation boxes
  • Inocase IP66 / IP67 series - housing / stainless steel terminal boxes / installation boxes

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Rolec

Inocase IP66 / IP67 series - housing / stainless steel terminal boxes / installation boxes

Ingress protection:
- IP 67 optional

Dimensiones of inoCASE 4301 / A2 + 4404 / A4 Stainless steel:
- 18 Versions
- Dimensions L x W x H: 140 x 110 x 60 mm up to 430 x 300 x 120 mm
Dimensions inoCASEmini 4301 / A2 + 4404 / A4 Stainless steel:
- 6 Versions
- Dimensions L x W x H: 100 x 70 x 50 mm up to 200 x 90 x 60 mm
More information:
- ROLEC inoCASE + inoCASEmini – Trend setting enclosures made of stainless steel V2A + V4A.
- V2A: Space-saving single-channel lid and assembly fastening, outside the enclosure interior.
- V4A: Assembly with separate fastening channels.
- 4301/A2 is the world‘s most commonly used rustproof stainless steel material. Internationally, this quality predominantly bears the designation "304", the material used in the standard version of the new ROLEC inoCASE enclosure.
- 4404 / A4 internationally customarily designated „316L“, is even more resilient. This alloy contains molybdenum for the further enhancement of corrosion resistance, in particular to chloride and seawater.
- Schutzart IP 66, optional IP 67 inoCASE A2/A4 enclosures obtain an aesthetically pleasing, high gloss surface that is even more resistant to corrosion due to alternative "electropolishing".

  • M Mounting plates
  • T Supporting rail
  • PLUS Ingress protection IP 67
  • D Silicone gasket
  •  Electropolishing

inoCASE

Seria INOCASE aplikacje Seria INOCASE aplikacje Seria INOCASE aplikacje Seria INOCASE aplikacje


inoCASEmini

Seria INOCASEmini aplikacje 1 Seria INOCASEmini aplikacje 1 Seria INOCASEmini aplikacje 1 Seria INOCASEmini aplikacje 1

IC 070

IC 093, elektropolerowane

IC 132

IC 300
Seria INOCASE IC 070 Seria INOCASE IC 093 Seria INOCASE IC 132 Seria INOCASE IC 300
ICC 072 ICC 090 ICC 152 CC 172, elektropolerowane
Seria INOCASE ICC 072 Seria INOCASE ICC 090 Seria INOCASE ICC 152 Seria INOCASE IC 172

Delivery overview inoCASE A2 stainless steel
M
T
Plus
D
EP		 Drawings and dimensions
Type Mat.-No L W H D E g

IC 110

 173.110.000 140 110 60 117 85 1490 pobierz

IC 112

 173.112.000 200 110 60 177 85 1716 pobierz

IC 130

 173.130.000 160 130 60 137 105 1100 pobierz

IC 132

 173.132.000 220 130 60 197 105 1358 pobierz

ICF 150

 172.150.000 180 150 60 157 125 1230 pobierz

IC 150

 173.150.000 180 150 90 157 125 1530 pobierz

ICF 152

 172.152.000 260 150 60 237 125 2029 pobierz

IC 152

 173.152.000 260 150 90 237 125 2560 pobierz

ICF 170

 172.170.000 200 170 60 177 145 2190 pobierz

IC 170

 173.170.000 200 170 90 177 145 2392 pobierz

ICF 172

 172.172.000 280 170 60 257 145 2506 pobierz

IC 172

 173.172.000 280 170 90 257 145 2839 pobierz

IC 200

 173.200.000 230 200 120 207 175 3113 pobierz

IC 202

 173.202.000 330 200 120 307 175 3792 pobierz

IC 250

 173.250.000 280 250 120 257 225 3920 pobierz

IC 252

 173.252.000 380 250 120 357 225 4702 pobierz

IC 300

 173.300.000 330 300 120 307 275 4829 pobierz

IC 302

 173.302.000 430 300 120 407 280 5711 pobierz

Delivery overview inoCASEmini A2 stainless steel
M
T
Plus
D
EP		 Drawings and dimensions
Type Mat.-No L W H D E g

IC 070

 173.070.000 100 70 50 78 48 453 pobierz

IC 072

 173.072.000 140 70 50 118 48 551 pobierz

IC 074

 173.074.000 180 70 50 158 48 649 pobierz

IC 090

 173.090.000 120 90 60 98 68 635 pobierz

IC 092

 173.092.000 160 90 60 138 68 757 pobierz

IC 093

 173.093.000 200 90 60 178 68 879 pobierz

Dimensions

Delivery overview inoCASE A4 stainless steel
M
T
Plus
D
EP		 Drawings and dimensions
Type Mat.-No L W H D E g
ICC 110 175.110.000 140 110 60 120 90 1020 pobierz
ICC 112 175.112.000 200 110 60 180 90 1180 pobierz
ICC 130 175.130.000 160 130 60 140 110 1100 pobierz
ICC 132 175.132.000 220 130 60 200 110 1358 pobierz
ICCF 150 174.150.000 180 150 60 160 130 1230 pobierz
ICC 150 175.150.000 180 150 90 160 130 1530 pobierz
ICCF 152 174.152.000 260 150 60 240 130 2029 pobierz
ICC 152 175.152.000 260 150 90 240 130 1875 pobierz
ICCF 170 174.170.000 200 170 60 180 150 1680 pobierz
ICC 170 175.170.000 200 170 90 180 150 1750 pobierz
ICCF 172 174.172.000 280 170 60 260 150 1960 pobierz
ICC 172 175.172.000 280 170 90 260 150 2260 pobierz
ICC 200 175.200.000 230 200 120 210 180 2580 pobierz
ICC 202 175.202.000 330 200 120 310 180 3260 pobierz
ICC 250 175.250.000 280 250 120 260 230 3340 pobierz
ICC 252 175.252.000 380 250 120 360 230 4190 pobierz
ICC 300 175.300.000 330 300 120 310 280 4230 pobierz
ICC 302 175.302.000 430 300 120 410 280 5210 pobierz

Delivery overview inoCASEmini A4 stainless steel
M
T
Plus
D
EP		 Drawings and dimensions
Type Mat.-No L W H D E g
ICC 070 175.070.000 100 70 50 80 52 380 pobierz
ICC 072 175.072.000 140 70 50 120 52 466 pobierz
ICC 074 175.074.000 180 70 50 160 52 550 pobierz
ICC 090 175.090.000 120 90 60 100 72 539 pobierz
ICC 092 175.092.000 160 90 60 140 72 630 pobierz
ICC 093 175.093.000 200 90 60 180 72 715 pobierz

Dimensions
