KE-LED-EA 3006-P | LED fluorescent lamp

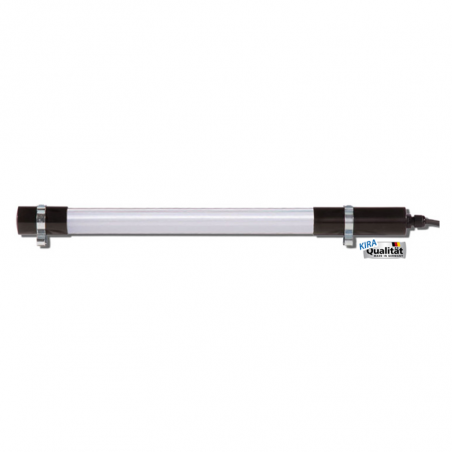

KE-LED-EA 3006-P | LED TUBE LUMINAIRE
Due its robust construction (IP54 [&] impact-resistant polycarbonate protective tube), the KE-LED-EA 3006-P is the ideal lighting solution for nearly every machine or technical system. No external ballast is needed to operate the lamp. A glare-free, pleasant working light is ensured by the use of a special prism protection tube. By means of the spring steel clamps included in the scope of delivery, the luminaire can be installed quickly and easily and the illumination can be adjusted optimally.

Technical Data KE-LED-EA 3006-P
Illuminant 6 POWER LEDs / 5000 Kelvin
Power 5 W
Luminous flux ca. 700 Lumen
Voltage 230V / 110V / 42V / 24V / 12V
Protective tube polycarbonate, 30 mm Ø
Diffusor special prism protective tube
End caps ABS, schwarz
Fixing clmaps 2 fixing clamps made out of steel
Cable 5 m H05RN-F 2 x 1,0 mm² (aother lengths on request)
Plug without
Protection (IP) IP54
Protection class II / III
Length / Weight 454 mm / 0,5 kg
Ambient temperature range -10°C - +40°C

Type Quantity
POWER LED		 Voltage Amp. Plug Weight Art.-No.
KE-LED-EA 3006-P/230 3 230V AC 0,045A Contour- 0,5 kg 131606
KE-LED-EA 3006-P/110 3 110V AC/DC 0,050A w/o 0,5 kg 131607
KE-LED-EA 3006-P/42 3 42V AC/DC 0,1405A w/o 0,5 kg 131608
KE-LED-EA 3006-P/24 3 24V AC/DC 0,180A w/o 0,5 kg 131609
KE-LED-EA 3006-P/12 3 12V AC/DC 0,280A w/o 0,5 kg 131611

Type Description Art.-No.
KM 30 Fixation clamp with magnet 290500
FSK 30 Spring steel clamp, galvanized 290084
SELV Trafos see standard accessories


Type Dimensions in mm
a b c d e f
KE-LED-EA 3006-P 454 60 287 25 33 30


2 fixing clamps included in the scope of delivery
