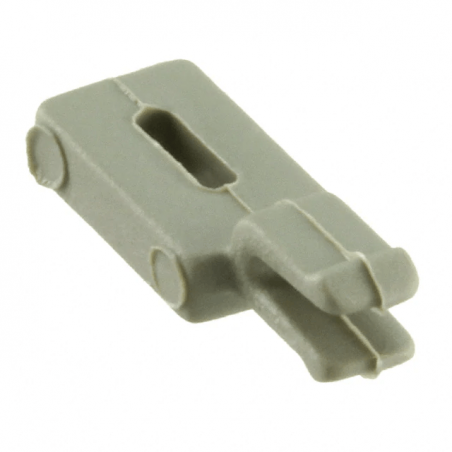

3684326 Keys, red
  • 3684326 Keys, red

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3684326 Keys, red

  • 3684326
  • Colour red
  • Version Pokrycie całkowitej głębokości subrack
  • Width (HP) 84 HP
  • Side panel depth 245 mm
  • Housing depth 212 mm
  • Top- / Bottom covers wentylowany
  • Packed after 1 Zestaw
Keys are used for coding of board-type plug-in units and prevent the use of assemblies in incorrect slots. The keys are inserted into the chambers of the keyable guide rails and the injector/extractor handles, types IV, IVs and VII
(4 positions are possible). This produces 64 keying combinations per guide rail.
When keying the top and bottom guide rail, 4096 potential combinations are possible.

Standards: IEEE 1101.10, IEC 60 297-5-104 Material: Plastic, PBTP, base material to UL 94-V0
