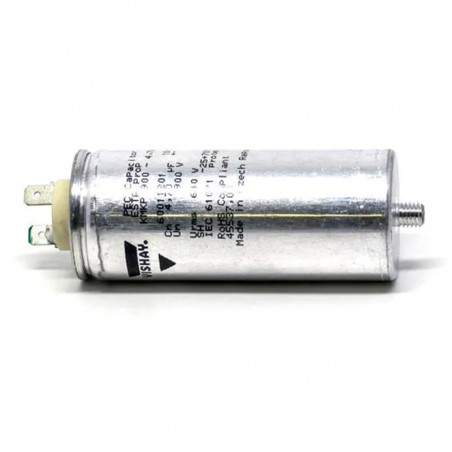

Commutation and damping capacitors series KMKP/KA 320-3500V

Technical data

KMKP:with regeneration capability
KA:without regeneration capability
Permissible temperature range:housing temp.: -25°C to 70°C
storage temp.: -40°C to 85°C
Permissible relative humidity:95%
Operating time (with 3% error coefficient):100,000 h
Capacitance tolerance:±10%
Voltage test (terminal/terminal):2,15 x UN/√2 AC/1s
Voltage test (terminal/case):2 x URMS + 1000V AC/60s
(min. 3000V/AC/60s)
Repetitive impulse current:du/dt x C(A)
Loss factor:(50 Hz): -4
(1 kHz): -4


Electrical connections: AMD plug 6,3 x 0,8mm, M10 screws

Impregnation agent:NON PCB
Dielectric:KMKP series: polyester film, self-healing
KA series: polyester film, non-self-healing
Mounting position:vertical/horizontal


TypeCapacity
[µF]		I
[A]		du/dt
[V/µS]		RS
[mΩ]		Dimensions
[mm] Ø x h		Weight
[kg]		Drawing No.
Technical data
SERIES KMKP 320
KMKP 320 - 2,2IA2,2126001230x720,051Rated voltage UN – 320 V
Peak voltage URMS – 230 V
Repetitive pulse voltage US – 483 V
Non-repetitive pulse voltage US max – 966 V
KMKP 320 - 3,3IA3,312600730x720,051
KMKP 320 - 4,7IA4,715600730x720,051
KMKP 320 - 6,8IA15600735x720,071
KMKP 320 - 10,0IA1015600740x720,091
KMKP 320 - 15,0IA1518600550x720,141
KMKP 320 - 22,0IA22186001,660x720,161
KMKP 320 - 33,0IA33186001,550x1090,215
KMKP 320 - 47,0IA47183001,560x1090,315
KMKP 320 - 68,0IA68183001,560x1270,365
KMKP 320 - 100IB100603001,364x1400,457
KMKP 320 - 240IB240803001,384x1901,057
KMKP 320 - 340IB340803001,384x2401,337
SERIES KMKP 600
KMKP 600 - 1,0IA1126001230x520,041Rated voltage UN – 600 V
Peak voltage URMS – 425 V
Repetitive impulse voltage US – 893 V
Non-repetitive impulse voltage US max – 1785 V
KMKP 600 - 2,2IA2,212600730x720,051
KMKP 600 - 3,3IA3,312600730x720,071
KMKP 600 - 4,7IA4,715600735x720,071
KMKP 600 - 6,8IA6,815600740x720,091
KMKP 600 - 10,0IA1015600250x720,141
KMKP 600 - 15,0IA15186001,640x1270,161
KMKP 600 - 22,0IB22406001,550x1090,217
KMKP 600 - 33,0IB33503001,560x1090,317
KMKP 600 - 47,0IB47803001,584x1050,457
KMKP 600 - 68,0IB68803001,584x1400,787
KMKP 600 - 100IB100803001,384x1901,057
KMKP 600 - 160IB160803001,384x2401,337
SERIA KMKP 750
KMKP 750 - 1,0IA1126001230x520,041Rated voltage UN - 750 V
Peak-to-peak voltage URMS - 530 V
Repetitive impulse voltage US - 1113 V
Non-repetitive impulse voltage USmax - 2226 V
KMKP 750 - 2,2lA2,212600730x720,051
KMKP 750 - 3,3lA3,315600735x720,071
KMKP 750 - 4,7lA4,715600740x720,091
KMKP 750 - 6,8IA6,815600250x720,141
KMKP 750 - 10,0IA10186001,850x920,181
KMKP 750 - 15,0IA15186001,860x920,265
KMKP 750 - 22,0IB22403001,860x1090,317
KMKP 750 - 33,0IB33603001,564x1400,457
KMKP 750 - 47,0IB47803001,384x1900,617
KMKP 750 - 68,0IBK68803001,364x2401,057
KMKP 750 - 68,0IB100803001,384x2400,957
KMKP 750 - 100IB120803001,384x2401,287
KMKP 750 - 120IB120803001,384x2401,337
SERIES KMKP 900
KMKP 900 - 0,1 IA0,1127502030x520,041Rated voltage UN - 900 V
Peak-to-peak voltage URMS - 640 V
Repetitive impulse voltage US - 1344 V
Non-repetitive impulse voltage US max-2688 V
KMKP 900 - 0,22 IA0,22127502030x520,041
KMKP 900 - 0,33 IA0,33126001830x520,041
KMKP 900 - 0,47 IA0,47125001830x520,041
KMKP 900 - 0,68 IA0,68155001530x520,041
KMKP 900 - 1,0 IA1165001035x520,051
KMKP 900 - 2,2 IA2,2165001235x720,071
KMKP 900 - 2,2 IAK2,2165001045x520,081
KMKP 900 - 3,3 IA3,31650010,535x820,081
KMKP 900 - 4,7 IA4,718300740x970,121
KMKP 900 - 6,8 IA6,818300550x920,185
KMKP 900 - 10,0 IA1018300560x970,275
KMKP 900 - 10,0 IB1040300560x1090,317
KMKP 900 - 15,0 IA1518300260x1090,315
KMKP 900 - 15,0 IB1540300260x1090,317
KMKP 900 - 22,0 IB22803001,564x1400,457
KMKP 900 - 22,0 IBK22803001,584x1050,587
KMKP 900 - 33,0 IB33803001,564x2400,857
KMKP 900 - 33,0 IBK33803001,584x1400,787
KMKP 900 - 47,0 IB47803001,564x2400,927
KMKP 900 - 47,0 IBK47803001,584x1901,067
KMKP 900 - 68,0 IB68803001,584x2401,337
KMKP 900 - 0,47 IAX0,47107501835x520,053
KMKP 900 - 0,68 IAX0,68107501535x520,053
KMKP 900 - 1,00 IAX1107501035x520,053
SERIES KMKP/KA 1100
KMKP 1100 - 0,10 IAX0,1107502035x520,053Rated voltage UN- 1100V
Peak voltage URMS- 780V
Repetitive impulse voltage US - 1638V
Non-repetitive impulse voltage USmax -3276V
KMKP 1100 - 0,22 IAX0,22107502035x520,053
KMKP 1100 - 0,33 IAX0,33107501835x820,083
KMKP 1100 - 0,47 SA0,47127501840x820,14
KMKP 1100 - 0,68 SA0,68127501540x820,14
KMKP 1100 - 1,0 lA1185001250x720,145
KMKP 1100 - 2,2 lA2,2185001050x920,245
KMKP 1100 -3,3 lA3,318500850x1270,255
KMKP 1100 - 4,7 lA4,718500860x1270,365
KMKP 1100 - 6,8 lA6,818200560x1270,365
KMKP 1100 - 10 IB1060200264x1400,457
KMKP 1100 - 15,0 IB1560200264x1900,617
KMKP 1100 - 22 IB2280200284x1901,057
