LED lighting for Herionova series machine tools

Herionov

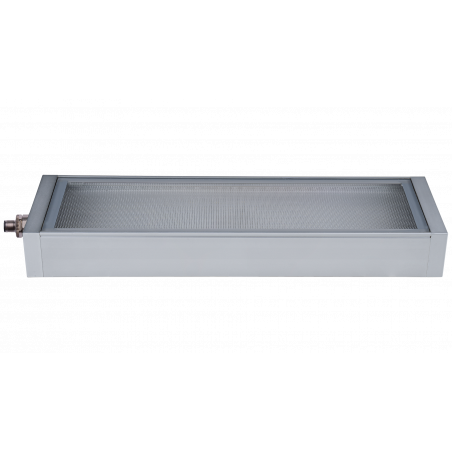

Herionova is a surface mount machine lighting solution that provides exceptional illumination for wide areas inside large machines. The sturdy anodized aluminum housing with a depth of 1-9 / 16 ″ is vibration resistant and has high heat dissipation. Herionova luminaires are available with IP67 protection for safe use in humid environments with oil, coolants, greases and dust. The 3/16 ″ toughened safety front glass is impurity resistant to IK07 impacts and cools to the touch on a bright surface to avoid seizure of the coolant on the glass, causing it to become bronzed. This machine lamp produces an intense luminous flux of up to 8,900 lumens thanks to the designed state-of-the-art, highly efficient LEDs in combination with controlled electronic circuit boards. Redesigned anti-glare optics provide both uniform and diffused illumination inside giant machines. With an engineered modular aluminum housing and flexible PCBs, Herionova 's surface mount series offers four standard lengths and many custom size preferences. The 10-foot cable or M12 connector provides safe, quick and easy electrical connection up to 24 V DC without any additional power supply. Herionova luminaires are surface mount lamps that are the answer to complex CNC machines, production and automation applications. The two standard bracket options can be rear or side mounted, providing a secure fit and allowing flexible light direction adjustment.

• LED lighting suitable for industrial applications, automation processes, medium and large CNC machines
• Extremely strong luminous flux (up to 9800 lumens)
• Corrosion and vibration resistant
• High resistance to oils, coolants and metal shavings
• Full protection against the ingress of dust and liquids
• High degree of protection IP67
• Natural, efficient lighting ensuring uniform illumination of the surface
• 50% energy saving and constant beam for 60,000 hours
• Without UV and IR
• No additional equipment is needed
• Connect quickly and securely
• 4 model sizes
• Rear or side mounting brackets available
• A choice of power cord lengths from 5 to 33 feet
• Recommended for retrofitting

Mechanical

The combination of design and performance in HERIO NOVA creates an ultra-durable construction ideal for use in harsh environments.

• Robust anodized aluminum housing with tightened aluminum side caps
• A heat sink that dissipates more heat even at maximum operating temperature
• 0.16 inch thickness IK06 impact resistant ultra clear tempered windshield
• 0.12 inch thick non-glare prismatic plexiglass (PMMA) diffuser
• IP67 degree of protection and Viton® sealing
• 4 different lengths for 4 different models

Electric

The main feature of the HERIO NOVA series is the powerful beam that is generated by combining high performance medium power LED circuits and a prismatic cone diffuser optimized by numerical algorithms.

• Power LED board with IDS 24 Vdc
• Connection via M12 male connector
• Power cord with female M12 connector

Optical

The prismatic conical diffuser increases the anti-reflective effect, but still maintains a constant luminous flux and uniform illumination inside the structure.

• 5000K CRI 80 monochrome lighting
• 120 ° diffused beam
• No photobiological risk in accordance with EN 62471

POWER CABLES

The HERIO NOVA series can be supplied with pre-assembled PUR interconnect cables with M12 connector socket (straight or 90 °) in various lengths from 5 to 33 feet, and custom M12 connector sockets and plugs are available for particularly easy integration. </ P>

N11810001040302 Straight female connector M12
M12V.F.3C1.5 M12 female connector 4P 3 pole movable with 1.5 m cable	M12V.F.3C3 M12 female connector 4P 3 pole movable with 3m cable	M12V.F.3C5 M12 female connector 4P 3 pole movable with 5m cable	M12V.F.3C10 M12 female connector 4P 3 poles movable with 10m cable
N11910001040302 M12 90 ° female movable joint
M12V.FL.3C1.5 M12 90 ° Female 4P Floating Connector 3 Poles with 1.5m cable	M12V.FL.3C3 M12 90 ° female 4P 3 pole movable connector with 3m cable	M12V.FL.3C5 M12 90 ° female 4P 3 pole movable connector with 5m cable	M12V.FL.3C10 M12 90 ° female 4P 3 pole movable connector with 10m of cable
