Manufacturer: C.C.E.A.

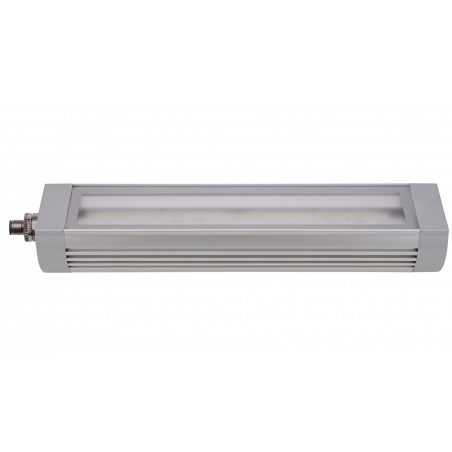

Trackalpha TA0221S02

  • TA0221S02
  • Supply voltage 13 W
  • Surface treatment Standard
  • Working temperature 04°F (-20°C) do +113°F (+ 45°C)
  • Housing material Wytłaczane aluminium anodowane
  • Protection rating IP67 Compatible with NEMA Type 12
  • Lighting angle 120°
  • Performance 100 lm/W
  • Electronic connection M12
  • Insulation class Class III (SELV)
  • Impact resistance 1.00 N m/s
  • Side housings Malowane aluminium
  • Efficiency Class A/A+/A++/A+++ (Zintegrowany moduł LED) zgodny z ustawą UE nr 874/2012
  • Device Power Protection Pełna ochrona przed odwrotną polaryzacją
  • Current 0.56 A @ 24 Vdc
  • Luminous Flux 1300 lm
  • CRI 80
  • LED Lifespan 60.000 L70
  • Type of LEDs Mid Power LED
  • Weight 1.20kg
  • Voltage UDS 22-28 Vdc
Lighting system for industrial applications, automation, medium and large CNC machines. A solid enclosure from anodized aluminum in combination with a fronted toughened glass creates an impenetrable body for coolants, emulsions and chips. Suitable for humid places, it is resistant to vibration.
