Lumberg cables. Bones finished with M12 connectors
  • Lumberg cables. Bones finished with M12 connectors

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Lumberg

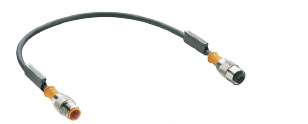

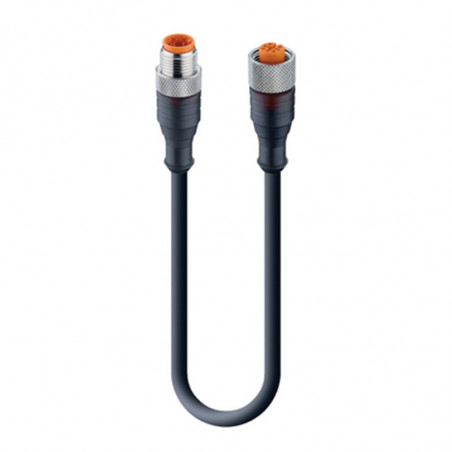

Lumberg cables. Bones finished with M12 connectors

Cable for sensor, IP 68, 3 or 4 contacts


Technical data

Body handle:
TPU, self-extinguished
Current
4A (CSA = 3A)
Operating voltage:
250 V AC/300 V DC
Cable
PUR, black, Ø 4,3 mm or 4,7 mm (225)
Wire section

IP:
3 x 0,34 mm2(42 x 0,1 mm)
 1 = brown
3 = blue
4 = black
EMV protection:
IP 68



Producer number Cable length
3 contacts
RST3-RKT4/3-224/0,3m 0,3 m
RST3-RKT4/3-224/0,6m 0,6 m
RST3-RKT4/3-224/1m 1,0m
RST3-RKT4/3-224/1,5m 1,5m
RST 3-RKT 4/3-224/2m 2,0 m
RST 3-RKT 4/3-224/5m 5,0 m

4 contact
RST 4-RKT 4-225/1 m 1,0m
RST 4-RKT 4-225/2 m 2,0 m
RST 4-RKT 4-225/5 m 5,0 m


Cable for sensor, IP 68, 3 contacts



Technical data

Body handle:
TPU, self-extinguished
Current
4A (CSA = 3A)
Operating voltage:
10 - 30 V DC
Cable
PUR, black, Ø 4,3 mm
Wire section
3 x 0,34 mm2 (42 x 0,1 mm)
IP:
IP 68
 1 = brown
3 = blue
4 = black




Producer number Cable length
RST 3-RKWT/LED A 4-3-224/0,3m 0,3 m
RST 3-RKWT/LED A 4-3-224/0,6m 0,6 m
RST 3-RKWT/LED A 4-3-224/1m 1,0 m
RST 3-RKWT/LED A 4-3-224/1,5m 1,5 m
RST 3-RKWT/LED A 4-3-224/2m 2,0 m
RST 3-RKWT/LED A 4-3-224/3m 3,0 m
RST 3-RKWT/LED A 4-3-224/5m 5,0 m


MINI CABLE 3 CONTACTS

IP:
Cable
Wire section

IP 67
PUR, black, Ø 4,6 mm,
3 x 0,5 mm2 (16 x 0 0,2 mm).





Producer number Cable length
With valve plug  DIN 43 650, type A

RST 5-3-VAD 1A-1-3-226/0,3m
 0,3 m
RST 5-3-VAD 1A-1-3-226/0,6m
 0,6 m
RST 5-3-VAD 1A-1-3-226/1m
 1,0 m
With valve plug, similar to DIN 43 650, type B

RST 5-3-VBD 1A-1-3-226/0,6m
 0,6 m
