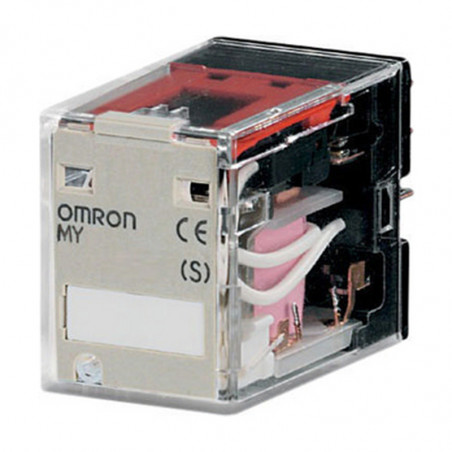

Mini power relays - MY series
  • Mini power relays - MY series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Omron

Mini power relays - MY series

Technical data
• Connectors type
soldering terminals, for different bases
• Connectors
MY2 - 2 switching over connectors,

MY4 - 4 switching over connectors,
• Connector material
Ag
• Nominal load
MY2 - 5 A @ 250 V AC, 5 A @ 30 V DC

MY4 - 3 A @250 V AC, 3 A @ 30 V DC
• Current
MY2-10A

MY2 - 5 A
• Voltage
250 V AC, 125 V DC
• Min switching power
5VDC, 1     A
• Max switching power
2500 VA, 300 W
• Operation time and fall time
max.     20 ms
• Ambient temperature
-55 do 70°C przy prądzie znamionowym (bez szronienia)
• Lifetime
coil AC:         50 mln switching cycles

coil DC:         100 mln switching cycles

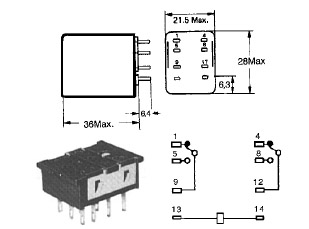

• Dimensions
28x 21,5x 36 mm
• Certificate
UL, CSA,VDE, IMQ

Type Coil nominal voltage Coil nominal current ]Coil resistance
MY2 12DC 12 VDC 75 mA 160 Ω
MY2 24DC 24 V DC 37 mA 650 Ω
MY2 24AC 24 VAC 59 mA 160 Ω
MY2 220/240AC 220 do 240 V AC 8mA 9800 Ω
base
PYF08A-E DIN assembled
PY08-02 PCB assembled
PY08 solder terminal from behind

MY4 12DC 12 V DC 75 mA 160 Ω
MY4 24DC 24 V DC 37 mA 650 Ω
MY4 24AC 24 V AC 59 mA 160 Ω
MY4 220/240AC 220 do 240 V AC 8mA 9800 Ω
base
PYF14A-E DIN assembled
PY14-02 PCB assembled
