MLA-015 electric actuators
  • MLA-015 electric actuators

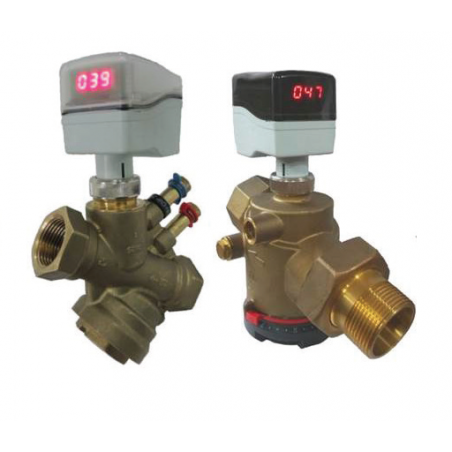

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: GINICE KOREA

MLA-015 electric actuators


Features:

  • Direct coupled installation without tools
  • Compact size allows installation in limited space
  • Modulating control
  • No mounting tools required
  • Manual override with hexagonal wrench 4 mm
  • Visual position indication
  • Ready-to-wire connecting cable (1.5m cable)
  • Receives 0-10VDC or 2-10VDC input signal, selectable at the site
  • Valve is closed automatically in case input signal is removed or failed.
  • Self-calibration function : Actuator run a self-calibration automatically once a day. It is used to prevent the valve sticking when the valve is not used for a long time while the power is on. Selected by dip switch


Technical data

Supplying power 24VAC ± 10% (50/60Hz), 24VDC or 12VAC/DC
Power consumption Operation : 2.7W / Stand-by : 1.3W
Rated force 150N
Operating time 15sec/mm
Stroke 6.5mm
In/Output signal 0(2)-10VDC
Enclosure IP54
Ambient temperature 0 ~ +50℃
Lead wire 1.5M (3.0M as option)
Materials PC
Connection to valve Coupling nut M30X1.5
Weight 0.23Kg
