Manufacturer: Koch

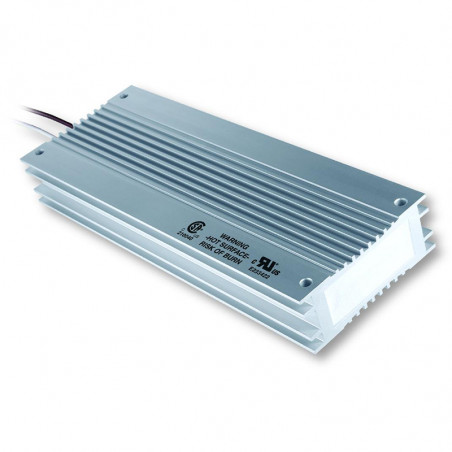

Modular power resistors in aluminum casing - BWD series

technical data:
BWD 250 series

Nominal power [W]
100 (250 przy ED = 35%; JA= 20°C)
dimensions [mm]
110 x 80 x 15
Available resistance [Ω]
10, 27, 33, 47, 72, 100, 150, 200, 220, 330,430, 620, 830

BWD500 series

Nominal power[W]
200 (500 przy ED = 35%; JA= 20°C)
Dimensions [mm]
216 x 80 x 15
Available resistance [Ω]
10, 12, 15, 22, 27, 35, 40, 43, 47, 50, 60, 72,100, 130, 150, 160, 200, 210,

240, 300, 310,430, 620

BWD1000 series

Nominal power[W]
400 (1000 przy ED = 35%; JA= 20°C)
Dimensions [mm]
216 x 80 x 30
Available resistance [Ω]
5, 10, 27, 33, 47,72, 100, 150,200, 300

Common parameters

Parameter(JA=20°C) Value unit Remarks
Tolerance ±5 % Room temperature
Temperature coefficient TK 20...100   10-6/K
Insulation resistance Rizol >100 MΩ V=1000VDC
Inductance L <30 µH f=300kH, V=50mV
Casing capacity C <300 pF f=300kH, V=50mV
Operating maximal voltage Vn V
  V
Test insulation voltageUizol >4000 V AC; f=50Hz; t=1 min.
Max. casing temperatureJC <250 °c Natural cooling
  <300* °c
Store temperature JS -25...85 °c
Caution
* - only for BWD1000 series
BWD 250
BWD 1000
BWD 600
