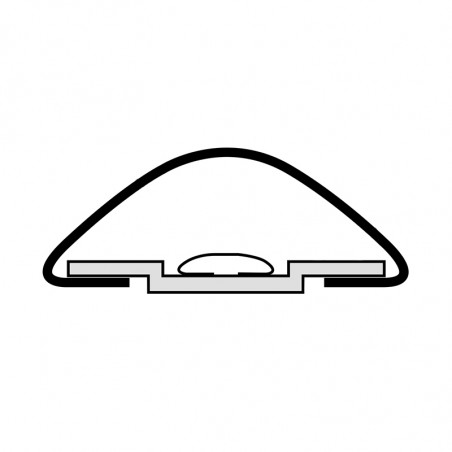

Instead of slots in the housing, a mounting track can be used for the shields with a T-end-piece.
Mounting track | Partno. |
---|---|
MS 2 for GK 5 - 6 | 9730 |
Mounting track | Partno. |
---|---|
MS 3 for GK 9 | 9735 |
Mounting track | Partno. |
---|---|
MS 4 for GK 13 - 18 | 9740 |
Mounting track | Partno. |
---|---|
MS 5 for GK 21 - 22 | 9745 |
T - końcówka | Partno. |
---|---|
TE 1 for GK 9 | 9750 |
TE 2 for GK 13 - 18 | 9751 |
TE 3 for GK 21 - 22 | 9752 |
Nity plastikowe | |
N E 1 for arkusza 0.5 - 1.5 mm | 9754 |
N E 2 for arkusza 1.1 - 1.9 mm | 9755 |
Rounded Shields
Form (Kształt) | a [mm] |
b [mm] |
H [mm] |
B [mm] |
S [mm] |
L [mm] |
Partno. |
---|---|---|---|---|---|---|---|
J4 | 3.56 | 1.22 | 2.3 | 23.4 | 0.13 | 406 | 9063* |
J5 | 3.56 | 1.22 | 2.3 | 23.4 | 0.13 | 406 | 9064* |
J6 | 3.56 | 1.22 | 2.3 | 23.4 | 0.13 | 406 | 9065* |
Form (Kształt) | B [mm] |
H [mm] |
No. of rivets | Partno. |
---|---|---|---|---|
HR 6 | 9.1 | 2.8 | 10 | 9763 |
HR 7 | 11.4 | 3.6 | 10 | 9764* |
HR 8 | 15.8 | 5.6 | 10 | 9765* |
Form (Kształt) | A [mm] |
L [mm] |
Partno. |
---|---|---|---|
MS 6 | 8.1 | 400 | 9763 |
MS 7 | 11.0 | 381 | 9764 |
MS 8 | 15.2 | 381 | 9765 |
