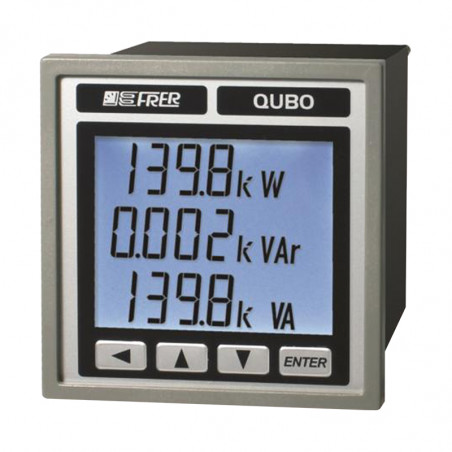

Analyzers of the QBO H three-phase network parameters

Technical data

Display Backlit LCD
Max. indication digits (9999)
Decimal point position automatic
Adjustable backlight 5 levels
Readings update <0.5 sec
Measuring type TRMS
Basic accuracy +/- 0,2%
Nominal input voltage Un 100 - 400V (690V)
Nominal input current In 1-5A
Input range 10-120% Un, 5-120% In
Operating frquency 45…65Hz
Continuous overload 2xIn; 1,2xUn
Short-term overload 20 x In; 2 x Un (300 msec.)
Current circuits consumption < 0.5VA
Voltage circuits consumption < 0.5VA
Power supply 230V (45...65Hz) ±10%
Power consumption 6VA
Operating temperature 0……+23……+50°C
Storage temperature -30…+70°C
Thermoplastic material UL 94V0
Protection for housing IP52
Protection for terminals IP20
Galvanic insulation aux.supply/inputs/out
Test voltage 2kV, 50Hz, 60sec.

CODE

Q72P3H005MCQ…

Communication protocols Standard Option
ModBus RTU +
Ethernet-ModBus TCP/Webserver   +
Johnson Controls N2 OPEN   +
Profibus DP v0   +

DESCRIPTION

Compact Multifunction meter suitable for three-phase three or four wires unbalanced load systems.
The QUBO H version performs additional “advanced” measurements which allow a very efficent monitoring and supply further information about the system operating conditions.

Analyzer options

Additional technical data

Energy counting maximum counting 20000000
Accuracy class 1
Bidirectionality No/Yes
Alarm outputs Photo-mos 50V, 100mA
Activation delay setting programm. 0...999 sec.
Programmability variable, value, direction
Pulse outputs programmable as alternative to alarms
Programmability pulse value
Pulse duration Progr. 30...1000 msec.
ModBus RTU
Interface RS485 insulated
Speed (bps) 9600/19200/38400
Communication parameters and stop program
Adressing range 1..247 program
ModBus TCP / Webserver
Johnson Controls N2 OPEN
ProfiBus DP V0		 by means of external accessory 2 DIN modules size

Measured variables

  • Line current
  • Star voltage L-N
  • Delta voltage L-L
  • V and I unbalance
  • Neutral current
  • Active power
  • Reactive power
  • Apparent power
  • Power factor
  • Power factor displacement)
  • Frequency
  • Bidirectional active energy
  • Partial active energy
  • Bidirectional reactive energy
  • Thermal current
  • Maximum thermal current
  • Average power
  • Maximum demand (kW)
  • Switchboard internal temperature
  • Total hours run
  • Phases sequence
  • THD V and I up to 32th harm

Wiring diagrams

Immediate display of measured variables
Less
Read more

Send an inquiry
