Single-phase network parameter analyzer QBO 96 Mono
  • Single-phase network parameter analyzer QBO 96 Mono

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FRER

Single-phase network parameter analyzer QBO 96 Mono

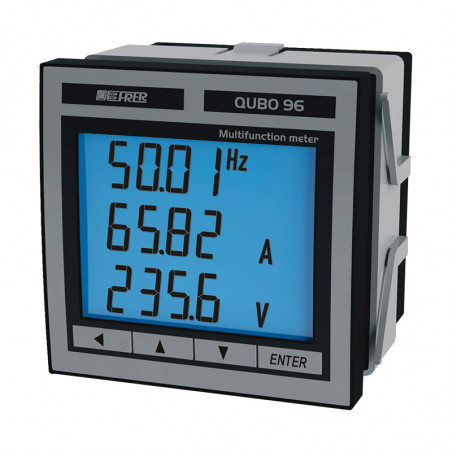

Multifunction One-phase Network Analyzer QUBO 96 MONO

Multifunction network analyzer, suitable for one-phase systems. It displays the main electrical measurements of an electrical network, including active and reactive energy counting. Moreover it performs and displays frequency, current and voltage at once.



Rated data

Display Backlit LCD
Digits height 13.5mm
Max. indication 4 digits
Decimal point position Autmatic
Adjustable backlight 5 levels
Reading update <0.5s
Measuring type True RMS
Basic accuracy ±0.2%
Rated voltage 230V
Rated current 1A, 5A
Input range 10-120% UN, 5-120% IN
Frequency 45…65Hz
CT ratio (max. primary 15kA
Continuous overload 2 x IN, 1.2 x UN
Short-term overload 20 x IN, 2 x UN (300msec.)
Current circuits consumption <0.5VA
Voltage circuits consumption <0.5VA
Supply voltage 230V (45…65Hz), 6VA
Operating temperature 0…23…50°C
Storage temperature -30…70°C
Housing material UL 94-V0
Protection for housing IP50
Protection for terminals IP20
Galvanic insulation In./out.
Installation category III, 300V, P.D. 2

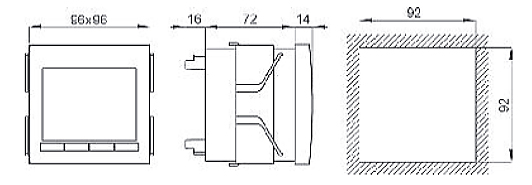

Dimensions

Analizator parametrów sieci jednofazowej QUBO 96 Mono wymiary

Code

QUBO 96 Mono Q96S3L005 - D3 - -
Communication RS485 Modbus M
Modbus TCP + WebServer + internal memory E
Modbus TCP + WebServer + Gateway G
Profibus DP V0 P
Johnson Controls N2 open J
Aux. power supply 220-240V AC 2
20-60V AC/DC L
80-260V AC/DC H
Option None -
2 outputs alarm/pulses U

Measured value

  • Phase voltages and currents
  • Total active, reactive and apparent power
  • Line power factor
  • Frequency
  • Active and reactive energy
  • Bidirectional active and reactive energy
  • Partial active energy
  • Thermal current
  • Maximum thermal current
  • Average active and reactive power
  • Maximum demand (kW and kvar)
  • Switchboard temperature
  • Hours run

Additional technical data

Energy counting
Number of digits 10
Maximum counting 2x109
Accuracy class 1 (kWh), 2 (kvarh)
Bidirectionality Yes
Alarm outputs
Activation delay setting Prog. 0…999s
Programmability Variable, value, direction
Pulse output
Programmability Pulse value
Pulse duration Prog. 30…1000ms
Modbus RTU
Interface RS485
Speed (bps) 9600/19200/38400/57600
Communication parameters Parity [&] stop prog.
Addressing range 1…247
Modbus TCP/Webserver
Ethernet interface IEEE 802.3 (u) 10 Base T/100 Base TX
Wiring RJ45
Speed 10/100 Mbit/s
Duplex Half/full
ProfiBus DP 0V
Network NRZ asynchronous
Baud rate 9.6kbit/s…12Mbit/s
Addressing range 1…99 prog.
Complies to EN 50170
Johnson Controls N2 OPEN
Interface RS485
Speed (bps) 9600
Parity None
Addressing range 1…247 prog.

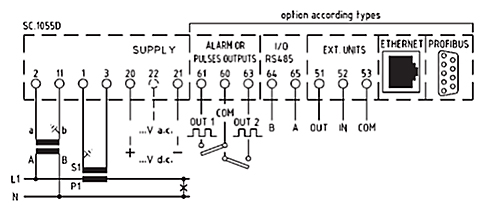

Wiring diagram

Analizator parametrów sieci jednofazowej QUBO 96 Mono - schemat łączeniowy





Less
Read more
