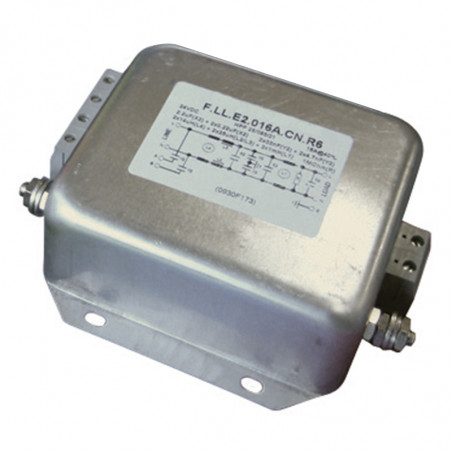

One phase filters F.LL.E2.series *** A.AN 250VAC 8-63A
  • One phase filters F.LL.E2.series *** A.AN 250VAC 8-63A

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Arcotronics

One phase filters F.LL.E2.series *** A.AN 250VAC 8-63A

Electrical data

Nominal voltage (UR): 250V 50/60HZ
Nominal current (IN): at ambient temperature 40°C
Leakage current (IL): maximum value at 230V, 50Hz
Voltage test (2s): line - ground 2700 VDC
line - line 1700 VDC
Climatic category: HPF (25/85/21)
Temperature range: -25°C - 85°C

Type IN
[A]		 IL
Leakage current (max)
[mA]		 Capacity
line-line		 Capacity
line-ground		 Inductance
[mH]
F.LLE2.008A.AN.R1 8 2x5,2 2.2µF(X2) +
0.68µF(X2)
MKT		 2x10nF(Y2)
+
2x47nF(Y2)		 2x10
F.LLE2.012A.AN.R1 12 2x5,2 2.2µF(X2) +
1µF(X2)
MKT		 2x10nF(Y2)
+
2x47nF(Y2)		 2x7,5
F.LL.E2.016A.AN.R1 16 2x5,2 2.2µF(X2)+
1µF(X2)
MKT		 2x10nF(Y2)
+
2x47nF(Y2)		 2x5
F.LL.E2.020A.AN.R1 20 2x5,2 2.2µF(X2) +
1µF(X2)
MKT		 2x10nF(Y2)
+
2x47nF(Y2)		 2x3,2
F.LL.E2.030A.AN.R1 30 2x5,6 2.2µF(X2) +
1µF(X2)
MKT		 2x15nF(Y2)
+
2x47nF(Y2)		 2x1,3
F.LLE2.036A.AN.R1 36 2x5,6 2.2µF(X2) +
1µF(X2)
MKT		 2x15nF(Y2)
+
2x47nF(Y2)		 2x1,3
F.LL.E2.055A.AN.R1 55 2x11,5 4.4µF(X2) +
1µF(X2)
MKT		 2x33nF(Y2)
+
2x94nF(Y2)		 2x1
F.LL.E2.063A.AN.R1 63 2x11,5 4.4µF(X2) +
1µF(X2)
MKT		 2x33nF(Y2)
+
2x94nF(Y2)		 2x1

Scheme

FILTRY JEDNOFAZOWE SERIA F.LL.E2. *** A.AN 250VAC 8-63A schemat

Dimensions [mm] and terminals

Type A
[mm]		 B
[mm]		 C
[mm]		 D
[mm]		 E
[mm]		 F
[mm]		 G
[mm]		 H
[mm]		 J
[mm]
F.LLE2.008A.AN.R1 131 99 95 105 10 51 85 40 16
F.LLE2.012A.AN.R1 131 99 95 105 10 51 85 40 16
F.LLE2.016A.AN.R1 131 99 95 105 10 51 85 40 16
F.LLE2.020A.AN.R1 131 99 95 105 10 51 85 40 16
F.LLE2.030A.AN.R1 148 99 95 105 10 51 85 57 19
F.LLE2.036A.AN.R1 148 99 95 105 10 51 85 57 19
F.LLE2.055A.AN.R1 219 170 113 129 10 115 100 60 20
F.LLE2.063A.AN.R1 219 170 113 129 10 115 100 60 17

FILTRY JEDNOFAZOWE SERIA F.LL.E2. *** A.AN 250VAC 8-63A

Characteristics – attenuation

................... - symmetrical (line-line)
___________ - asymmetrical (line-ground)
