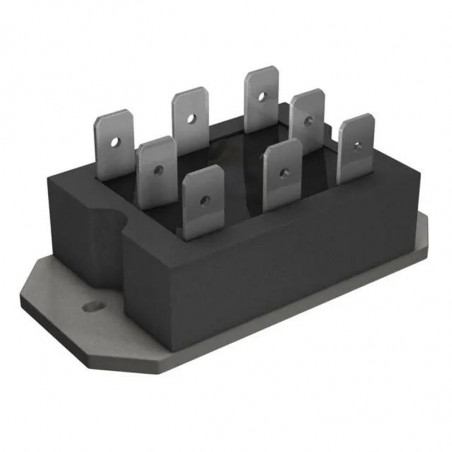

One phase half controlled
  • One phase half controlled

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Vishay

Single-phase semi-controlled

Technical data

Insulation voltage - 2500V-50Hz.



Available modules: Example designation:
with varistor
with reverse diode
with varistor and reverse diode
K
W
KW
P101K
P101W
P101KW


Electrical data

TypeVRRM
[V]
IO
[A]
TC
[°C]
IRMS
[A]
IT(AV)
IF(AV)
[A]
ITSM,IIFSMRthJCDC
[K/W]
Number
diagram
50 Hz
[A]
60 Hz
[A]
P10140025852812,53003150,560
PI 02600
PI 03800
PI 041000
PI 051200
P11140025852812,53003150,561
P112600
P113800
P1141000
P1151200
P12140025852812,53003150,562
P122600
P123800
PI 241000
P1251200
P13140025852812,53003150,563
P132600
P133800
PI 341000
P1351200
P401400408544203253400,2630
P402600
P403800
P4041000
P4051200
P411400408544203253400,2631
P412600
P413800
P4141000
P4151200
P421400408544203253400,2632
P422600
P423800
P4241000
P4251200
P431400408544203253400,2633
P432600
P433800
P4341000
P4351200


Housing


MOSTKI JEDNOFAZOWE PÓŁSTEROWALNE FIRMY IR



SCHEMAT 0
MOSTKI JEDNOFAZOWE PÓŁSTEROWALNE FIRMY IR schemat 0
SCHEMAT 1
MOSTKI JEDNOFAZOWE PÓŁSTEROWALNE FIRMY IR schemat 1
SCHEMAT 2
MOSTKI JEDNOFAZOWE PÓŁSTEROWALNE FIRMY IR schemat 2
SCHEMAT 3
MOSTKI JEDNOFAZOWE PÓŁSTEROWALNE FIRMY IR schemat 3
