Manufacturer: Panasonic

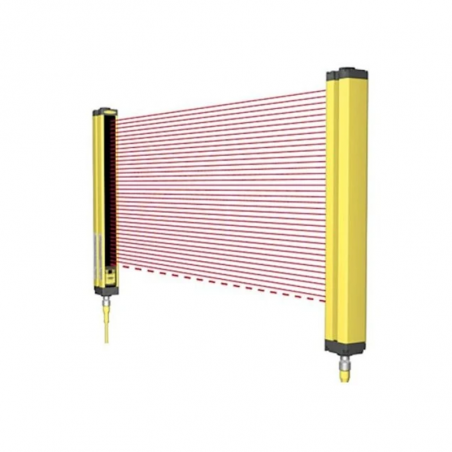

Optical security barrier SF2B series

Type 2 PLd SIL2
• Type II (according to: PN-EN-954-1)
• SIL CL2 PL d (new standards EN13849-1, EN62061)
• No dead zone, first beam 6mm from the casing end
• Response time (15ms)
• Hand protection (27mm) and body (47mm)
• External contact control(EDM)
• Self interference protection
• PNP or NPN outputs


Type Hand protection Body protection
Model SF2B-H__ SF2B-A__
Resolution 27 mm 47 mm
Operation range 0,2 -13 m
Height 168 - 1912 mm
Beam raster 20 mm 40 mm
Power supply 24 VDC +/-10 %
Output type PNP or NPN
Response time Stan OFF: 15ms, Stan ON: 40-60 ms
Dimensions W28 X H protection height X D24 mm

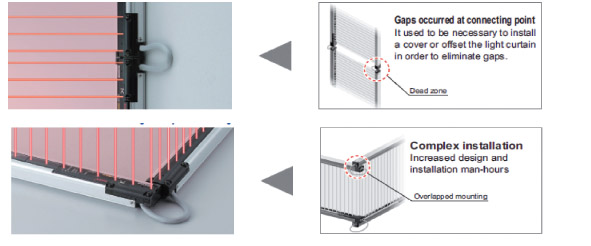

No dead zone, possibility of cascade connections of up to 3 barriers

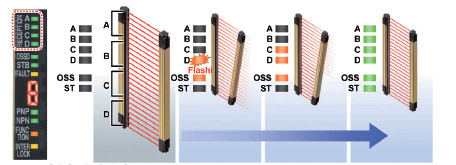

Build in diagnostics and indicators
Barrier is resistant for sun light
