Manufacturer: Panasonic

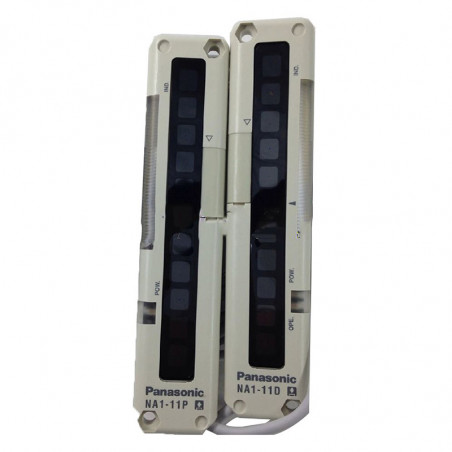

Optic sensors - 1-11 series

NA1-11 sensors are able to detect objects in area 10 x 100cm. Because of that they are great in applications, where it is difficult to detect object shift direction. It is possible because of unique cross beam technology usage,in which transmitters beams are delivered to all receivers. This allows for detection of small and flat objects like envelopes. Small sensor dimensions allow to save assembly space. .


Description


• 11 transmitters and receivers
• Max detection field 10 x 100cm
• Smallest detectable object: Ø = 13.5mm
• LED indicators
• Operation mode Light ON/dark ON
• Thin casing (10mm)

Symbol Type Operation range Output type Resolution
NA1-11-PN Transmitter - receiver 0,17-1 m Transistor PNP 13,5 mm

Operation mode:
