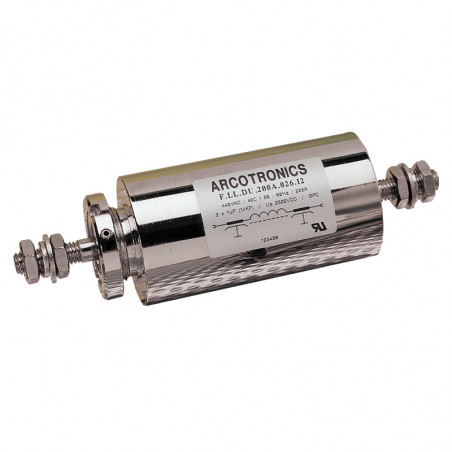

Pass filters - F.LL.DH-F.LL.DU series

Electrical data

Nominal voltage (UR): see table
Nominal current (IN): at ambient temperature 40°C
Voltage test (2s): see table
Climatic categories: GPC (40/85/56)
Temperature range: -40°C - 85°C

Type
F.LL.		 IN
[A]		 UN(V)
AC(50/60Hz)/DC		 According to standard
VDE0565-1-A		 Voltage test
VDC		 Dimensions Damping (dB)
A
[mm]		 B
[mm]		 0,01
[MHz]		 0,1
[MHz]		 1
[MHz]		 10
[MHz]		 100
[MHz]		 1000
[MHz]
C[µF] Cl.
DH.016A.025.I0 16 250 / 440 2x0,1 Y 2700 57,5 140 - - 35 90 >100 >100
DH.025A.025.I0 25 250 / 440 2x0,1 Y 2700 57,5 140 ^ ^ 35 90 >100 >100
DH.040A.025.I0 40 250 / 440 2x0,1 Y 2700 57,5 140 - - 35 90 >100 >100
DH.100A.025.I0 100 250 / 440 2x0,1 Y 2700 77,5 180 - - 20 90 >100 >100
DH.040A.026.I0 40 440 / 750 2x1 X2 2500 39,5 166 15 27 65 >100 >100 >100
DU.100A.026.I0 100 440 / 750 2x1 X2 2500 46,5 180 15 27 65 >100 >100 >100
DU.200A.026.I0 200 440 / 750 2x1 X2 2500 49,5 185 15 27 65 >100 >100 >100
DU.300A.026.I0 300 440 / 750 2x1 X2 2500 68 215 15 27 65 >100 >100 >100
DU.040A.225.I0 40 250 / 440 2x1,1 Y 2700 39,5 185 15 27 65 >100 >100 >100
DU.100A.225.I0 100 250 / 440 2x1,1 Y 2700 46,5 180 15 27 65 >100 >100 >100
DU.200A.225.I0 200 250 / 440 2x1,1 Y 2700 49,5 185 15 27 65 >100 >100 >100
DU.300A.225.I0 300 250 / 440 2x1,1 Y 2700 68 215 15 27 65 >100 >100 >100
DU.040A.445.I0 40 250 / 440 2x2,2 X2 1500 39,5 166 18 32 68 >100 >100 >100
DU.100A.445.I0 100 250 / 440 2x2,2 X2 1500 46,5 180 18 32 68 >100 >100 >100
DU.200A.445.I0 200 250 / 440 2x2,2 X2 1500 49 185 18 32 68 >100 >100 >100
DU.300A.445.I0 300 250 / 440 2x2,2 X2 1500 68 215 18 32 68 >100 >100 >100
DU.040A.945.I0 40 250 / 350 2x4,7 * 1075 39,5 166 28 42 90 >100 >100 >100
DU.100A.945.I0 100 250 / 350 2x4,7 * 1075 46,5 180 28 42 90 >100 >100 >100
DU.200A.945.I0 200 250 / 350 2x4,7 * 1075 49 185 28 42 90 >100 >100 >100
DU.300A.945.I0 300 250 / 350 2x4,7 * 1075 68 215 28 42 90 >100 >100 >100
