Platforma systemowa PicoTCA

Picotca


Description of the Picotca system platform

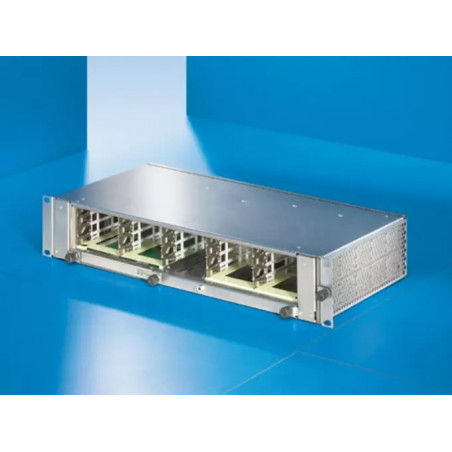

The Picotca system is a modular 19 "solution in a 2U enclosure adapted to support 12 AMC modules (full-size and compact) and MCH (full-size) modules. It was designed to cooperate with the following communication protocols: AMC.1 Type 4 (PCIe and Advanced Switching), AMC.2 Type 4, AMC.2 E2 (GBE) and AMC.3 (SAS / SATA). In the case of SAS / SATA motherboards, the point-point connection is carried out through a rear panel, which causes each slot to communicate directly with adjacent by the appropriate port 2 and 3. in the original version, the MCH (Micro- TCA Carrier Hub) module is Supported by the rear panel. Special executions and dedicated rear panels can be delivered on request.


Technical characteristics of the Picotca system platform

  • Dimensions: 19 ", 2U, depth 250 mm
  • AC / DC power supply Max. 450W:
    Input voltage: min. 90V AC - Max. 264V AC from PFC
    Input frequency: min. 47 Hz - Max. 63 Hz
    Exit: 3.3V DC / Max. 3A, 12V DC / Max. 38A
  • Cooling with 2 independent fans
  • Rear panels and AMC connectors made in the HARTING quality system
  • Integrated JTAG service connector
  • Support for 12 AMC modules (full-size, compact) compatible with AMC.1 Type 4 E2S and AMC.2 Type 4 E2S, as well as 1 MCH
  • Weight: 5.9 kg
  • Working temperature: 0 ° C to 45 ° C
  • Storage temperature: -40 ° C to 85 ° C

Basic advantages of the Picotca system platform

  • Compatibility with PICMG MICRO-TCA.0 R1.0
  • Extremely compact system ready for use
  • 250 mm depth housing adapted for assembly in 300 mm housings
  • AC / DC power supply
  • Speed ​​support up to 12.5 GB / s
  • Support for various AMC modules
  • Interchangeable filters
  • High level of EMC protection
  • Durable construction for industrial conditions
  • Fully assembled, wired and tested system ready to work.

Product No. Height (mm) Width (mm) Side panel depth
9911803 87 mm 482.6 mm (19 ") 250 mm
