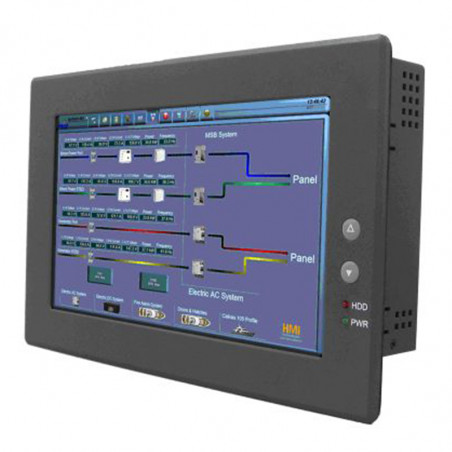

PMW10IA3S-A1 Panel industrial computer with touch screen - 10,1"/Intel Atom/2RS232/4USB/1PS/2

Industrial computer Panel PC series. It is a HMI interface with a 10,1" screen equipped with microprocessor Intel Atom N270 with low power consumption. Doesn't contain fans.

Beside energy saving operation and attractive price it's biggest advantages are: integrated touch screen, LED lightening, big contrast ratio (500:1) and resistance for dust and humidity(IP 54 from the front side).

Properties:

  • microprocessor Intel Atom N270 1,6 GHz,
  • chipset Intel 945GSE/ICH7M,
  • screem10,1" (1024 x 600 pixels) with LED lightening
  • resistive touch screen,
  • buttons for brightness control in the front panel.
  • build in double Gigabit Ethernet controller,
  • HDD 2,5" 20GB,
  • ports IDE, SATA II, 2 x RS232, 4 x USB, PS/2, audio.
  • power consumption 15W.
