Power 200-300 kW, frequency 15-45 kHz

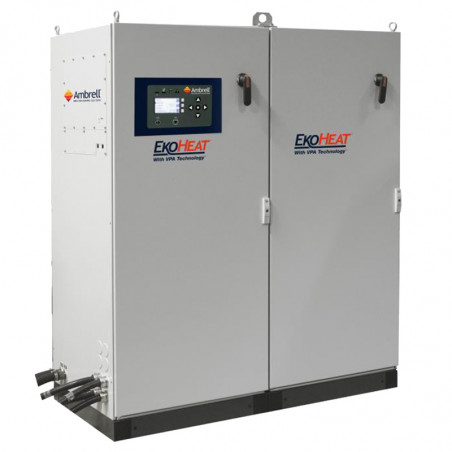

Generators for induction heating: power 200-300 kW, frequency 15-45 kHz

EKOHEAT induction heating systems for 15-40 kHz range provide reliable and repeatable solutions for heating larger parts when efficient heating of your part dimensions requires higher frequencies than our 10kHz models. Among the many typical applications are heat treating of steels, preheating for forging of steel, aluminum, copper or brass, crystal growing, and heating of graphite and metal crucibles.

Model
Max Power (kW)
Frequency (kHz)
Line Input (V)
Input Max (kVA)
EKOHEAT 200/25
200
15-40
360 - 520, 3 ph
232
EKOHEAT 250/25
250
15-40
360 - 520, 3 ph
290
EKOHEAT 300/25
300
15-40
360 - 520, 3 ph
348
EKOHEAT 375/25
375
15-40
360 - 520, 3 ph
436
EKOHEAT 500/25
500
15-40
360 - 520, 3 ph
558

Generators for induction heating EKOHEAT 200kW - 25kHz
Max Power: 200 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 232 kVA

Data Sheets:
EN | FR | DE | ES

Generators for induction heating EKOHEAT 250kW - 25kHz
Max Power: 250 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 290 kVA

Data Sheets:
EN | FR | DE | ES

Generators for induction heating EKOHEAT 300kW - 25kHz
Max Power: 300 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 348 kVA

Data Sheets:

Generators for induction heating EKOHEAT 375kW - 25kHz
Max Power: 375 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 436 kVA

Data Sheets:

Generators for induction heating EKOHEAT 500kW - 25kHz
Max Power: 500 kW
Frequency: 15-40 kHz
Line Voltage: 360 - 520, 3 ph Vac
Input Max: 580 kVA

Data Sheets:
