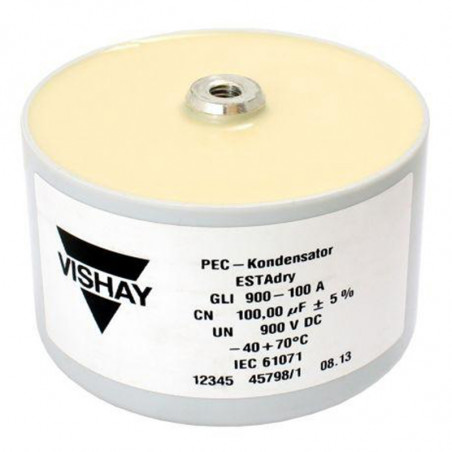

Power capacitors - GLI series
  • Power capacitors - GLI series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Vishay

Power capacitors - GLI series

Electrical data

Dielectric: polypropylene
Temperature coefficient: TCC: -2.3% -20°C - 70°C
Dissipation coefficient:
Capacity tolerance: ±5%
Temperature range: -40°C, 70°C for UR
-40°C, 100°C for 0,5*UR
Inductance: R <10nH
Life time: 100000 h for UR and 60°C
Voltage test: terminal/terminal = 1.5*UR DC, 10s
terminal/casing = 6000VAC, 60s
Casing: polypropylene
Filling: polyurethane resin, UL94, V-0
Standards: IEC 61071-1, EN 61071, IEC 61881

Type UR C
[µF]		 I
max
[A]		 du/dt Height
DC
[V]		 AC
[V]		 max
V/ms		 GLI...
H [mm]		 GLI...A
H [mm]
GLI / GLI...A
GLI 700, UNDC=700V
700-35 700 200 35 80 450 38 44
700-160 700 200 160 100 150 56 62
700-230 700 200 230 100 100 68 74
GLI 900, UNDC=900V
900-25 900 250 25 60 500 38 44
900-100 900 250 100 80 150 56 62
900-150 900 250 150 90 125 68 74
GLI 1100, UNDC=1100V
1100-15 1100 300 15 50 750 38 44
1100-75 1100 300 75 80 200 56 62
1100-100 1100 300 100 80 150 68 74
GLI 1250, UNDC=1250V
1250-50 1250 350 50 70 250 56 62
1250-75 1250 350 75 70 150 68 74
GLI 1450, UNDC=1450V
1450-40 1450 400 40 70 250 56 62
1450-60 1450 400 60 70 200 68 74
GLI 1800, UNDC=1800V
1800-25 1800 450 25 50 300 56 62
1800-35 1800 450 35 50 250 68 74
GLI 2150, UNDC=2150V
2150-18 2150 500 18 40 400 56 62
2150-25 2150 500 25 40 300 68 74

KONDENSATORY MOCY SERII GLI wymiary KONDENSATORY MOCY SERII GLI wymiary
