Photos are for informational purposes only. View product specification
please use latin characters
Connection Layout | Type | IR [A] | Diodes [pcs] | Plates [pcs] | Plate Dimensions [mm] | Width Type T" standard [mm] | Width Type "D" standard [mm] |
---|---|---|---|---|---|---|---|
![]() | PTS-200 | 200 | 24 | 6 | 100x100x3 | 220 | 170 |
PTS-240 | 240 | 24 | 6 | 100x200x3 | 220 | 170 | |
PTS-400 | 400 | 42 | 6 | 100x200x3 | 265 | 185 | |
PTS-500 | 500 | 48 | 6 | 100x300x3 | 265 | 180 | |
PTS-700 | 700 | 72 | 6 | 100x300x3 | 265 | 180 |
Note:
Fill factor - 60% / 12-Vrrm = 1200V

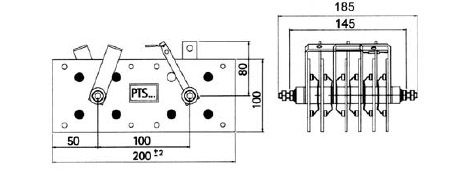

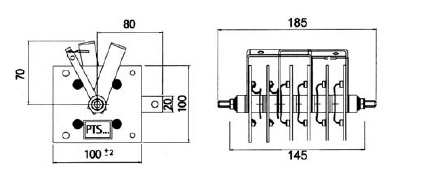

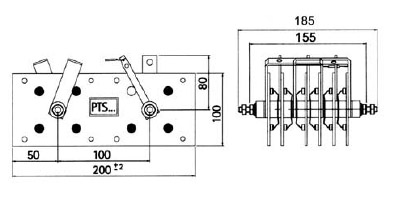

Housing - PTS 200 ![]() | Housing - PTS 400 ![]() |

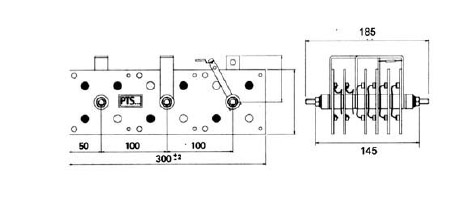

Housing - PTS 240 ![]() | Housing - PTS 700 ![]() |
Are you interested in this product? Do you need additional information or individual pricing?
Connection Layout | Type | IR [A] | Diodes [pcs] | Plates [pcs] | Plate Dimensions [mm] | Width Type T" standard [mm] | Width Type "D" standard [mm] |
---|---|---|---|---|---|---|---|
![]() | PTS-200 | 200 | 24 | 6 | 100x100x3 | 220 | 170 |
PTS-240 | 240 | 24 | 6 | 100x200x3 | 220 | 170 | |
PTS-400 | 400 | 42 | 6 | 100x200x3 | 265 | 185 | |
PTS-500 | 500 | 48 | 6 | 100x300x3 | 265 | 180 | |
PTS-700 | 700 | 72 | 6 | 100x300x3 | 265 | 180 |
Note:
Fill factor - 60% / 12-Vrrm = 1200V
Housing - PTS 200 ![]() | Housing - PTS 400 ![]() |
Housing - PTS 240 ![]() | Housing - PTS 700 ![]() |
