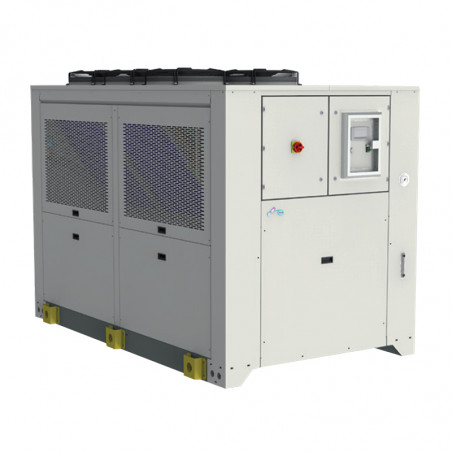

Coolers 7 series TCW2-Z0 165600 - 300800 W

Coolers Size 7 TCW series 165600 - 300800 W


Coling power range 166600 - 300800 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection.
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R134a.
Evaporator Plate heat exchanger with icing protection.
Condenser High efficient, spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consist of electric pump, plastic water container, valve, manometr 0-10 bar. Evaporator is protected with flow sensor.
Temperature control Done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.


Dimensions



Technical data


Type TCW R2 TCW S4 TCW T6 TCW V2 TCW Z0
Nominal cooling power [W] 166600 184400 226400 262400 300800
Ambient temperature [°C] -10 ÷ +45
Water temperature [°C] +8 ÷ +25
Cooling liquid R410A
Power supply [V/Hz] 400 V  3f / 50
Power [kW] 71,5 79,1 96,2 108,6 122,2
Pumps:
Water flow [l/min] 460/800 520/800 640/1400 470/1400 860/1400
Water pressure [bar] 2,9 2,6 3,2 3,1 3
Container capacity [l] 500
Water terminal [mm] 3’’ 3’’ 4’’ 4’’ 4’’
Weight [kg] 2300 2450 2500 2650 2700
