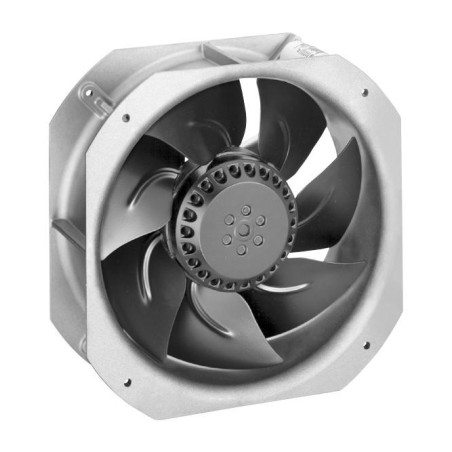

W2E200-HK38-01 Kompaktowy wentylator osiowy AC
  • W2E200-HK38-01 Kompaktowy wentylator osiowy AC

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

W2E200-HK38-01 Kompaktowy wentylator osiowy AC

  • W2E200-HK38-01 Kompaktowy wentylator osiowy AC 36161
  • Phase 1-Jan
  • Nominal voltage 230 / 230 VAC
  • Frequency 50 / 60 Hz
  • Type of data definition rfa / rfa
  • Valid for approval / standard CE / CE
  • Speed 2630 / 3000
  • Power input 60 / 70 W
  • Current draw 0.30 / 0.31 A
  • Max. back pressure 80 / 95 Pa
  • Max. ambient temperature 50 / 60 °C
  • Motor capacitor 1.5 / 1.5 µF
  • Capacitor voltage 450 / 450 VDB
  • Air flow 880 / 1000 m3/h
  • Back pressure 0 / 0 Pa
  • Sound pressure level 58 / 61 dB (A)
