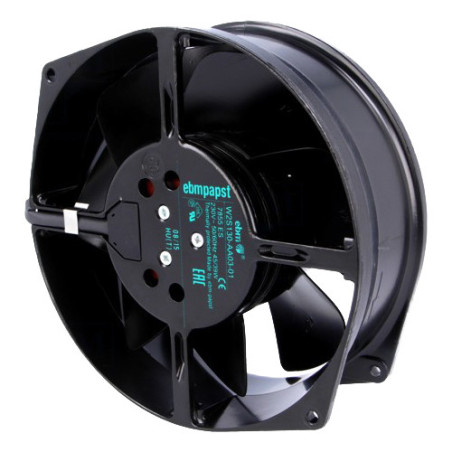

W2S130-AA03-01 Kompaktowy wentylator osiowy AC
  • W2S130-AA03-01 Kompaktowy wentylator osiowy AC

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

W2S130-AA03-01 Kompaktowy wentylator osiowy AC

  • W2S130-AA03-01 Kompaktowy wentylator osiowy AC 36159
  • Phase 1-Jan
  • Nominal voltage 230 / 230 VAC
  • Frequency 50 / 60 Hz
  • Type of data definition fa / fa
  • Valid for approval / standard CE / CE
  • Speed 2800 / 3250
  • Power input 45 / 39 W
  • Current draw 0.31 / 0.25 A
  • Max. back pressure 80 / 120 Pa
  • Min. ambient temperature -25 / -25 °C
  • Max. ambient temperature 50 / 70 °C
  • Starting current 0.45 / 0.40 A
  • Capacitor standard P0 (CE) / P0 (CE) / P0 (CE)
