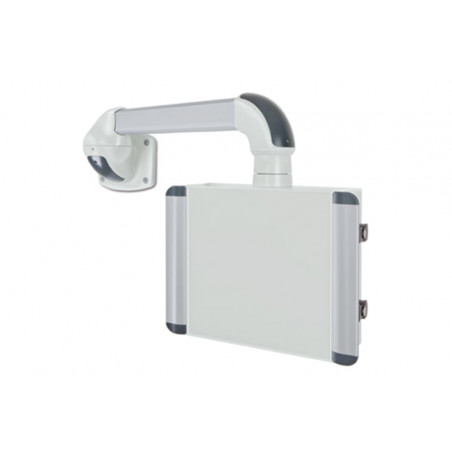

ProfilPlus 70

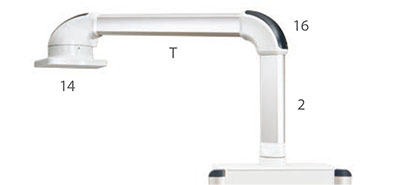

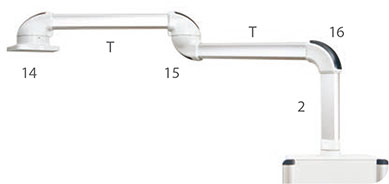

Thanks to its system diversity, profiPLUS offers a whole host of combination options for individual suspension arm configurations. The example variants presented here serve as orientation aids and demonstrate the diversity of the system.

All couplings available as standard with a fitted support profile.	Set screw system for setting any arbitrary pivot range.
Integrated earth bonding for protecting both man and machine.		Optional adapters for signal lights, e.g. from Werma (lights not included).
Integrated cable protection included as standard.		Reducer adapters from profiPLUS 70 to 50 for connecting smaller enclosure couplings.

System components

coupling

Upright

coupling

Hanging

Coupling N

Upright

Coupling N

Hanging

Desk coupling N

Upright

Desk coupling N

Hanging

Elbow coupling

Upright

System componentsy

Elbow coupling

Hanging

Elbow coupling N

Upright

Elbow coupling N

Hanging

Elbow desk coupling N

Upright

Elbow desk coupling N

Hanging

Wall joint

Socket joint

System components

Intermediate joint

Elbow

Base

70/50 adapter

Signal light adapterJoint/elbowFigure 15

Rys.	System components	Mat. no.	Hanging	Upright	pivoting	horizontally adjusting	tilting	Support profile length* mm	Weight / g	System length**** mm
1	coupling **	143 240 250		+	+			250	2210	68
		143 240 500		+	+			500	3590	68
		143 240 750		+	+			750	4970	68
		143 241 000		+	+			1000	6350	68
2		143 250 250	+		+			250	2210	68
		143 250 500	+		+			500	3590	68
		143 250 750	+		+			750	4970	68
		142 251 000	+		+			1000	6350	68
3	Coupling N **	143 260 250		+	+		+	250	3590	171
		143 260 500		+	+		+	500	4970	171
		143 260 750		+	+		+	750	6350	171
		143 261 000		+	+		+	1000	7730	171
4		143 270 250	+		+		+	250	3590	171
		143 270 500	+		+		+	500	4970	171
		143 270 750	+		+		+	750	6350	171
		143 271 000	+		+		+	1000	7730	171
5	Desk coupling N **	143 280 250		+	+		+	250	4700	V245/H47
		143 280 500		+	+		+	500	6080	V245/H47
		143 280 750		+	+		+	750	7460	V245/H47
		143 281 000		+	+		+	1000	8840	V245/H47
6		143 290 250	+		+		+	250	4700	V245/H47
		143 290 500	+		+		+	500	6080	V245/H47
		143 290 750	+		+		+	750	7460	V245/H47
		143 291 000	+		+		+	1000	8840	V245/H47
7	Elbow coupling	143 034 000		+	+				1740	V148/H80
8		143 035 000	+		+				1740	V148/H80
9	Elbow coupling N	143 036 000		+	+		+		3120	V251/H80
10		143 037 000	+		+		+		3120	V251/H80
11	Elbow desk coupling N	143 038 000		+	+		+		4260	V325/H127
12		143 039 000	+		+		+		4260	V325/H127
13	Wall joint	143 010 000		+	+	+			6800	203
14	Socket joint	143 005 000		+	+	+			5380	90
15	Intermediate joint	143 015 000		+	+				5320	90
17	Base ***	143 030 000	+	+					1620	50
T	Support profile 0,25m	143 000 250						250	1380
T	Support profile 0,50m	143 000 500						500	2760
T	Support profile 0.75m	143 000 750						750	4140
T	Support profile 1,00m	143 001 000						1000	5520
T	Support profile 1,50m	143 001 500						1500	8280
18	70/50 adapter	143 000 001	+	+					370	55
19	Adapter signal light – joint	143 020 501							180
19	Adapter signal light – elbow	143 020 502							200

+ Functional features
* Special lengths available on request
** Delivery with support profile fitted
*** Horizontal and vertical installation possible
**** The cited values are added to the support profile length. This provides the effective system length. (Details are vertical (V) and horizontal (H) for an upright coupling rotating axis respectively

Technical data

System components:
Die cast aluminium, RAL 7035 light grey

Cover:
Plastic (POM), RAL 7016 anthracite grey

Bellows:
PVC-P, (-30^oC do +70^oC) RAL 7016 anthracite grey

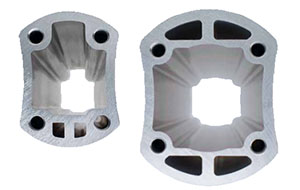

Support profile :
Extruded aluminium profile, silver anodised
Fastening thread preformed

Gasket:
Chloroprene (CR), (-30^oC do +90^oC)

Ingress protection:
IP54 / EN 60529

Integrated earth bonding:
DIN VDE 0113 / EN 60204-1 / IEC 204-1

Patented:
Fast horizontal alignment of the complete system structure with a single set screw

OPTIONAL:

Surface:
Special colours for system elements and support profiles

Matching ROLEC control enclosures:
commandCASE , topVISION, multiVISION, aluFACE
