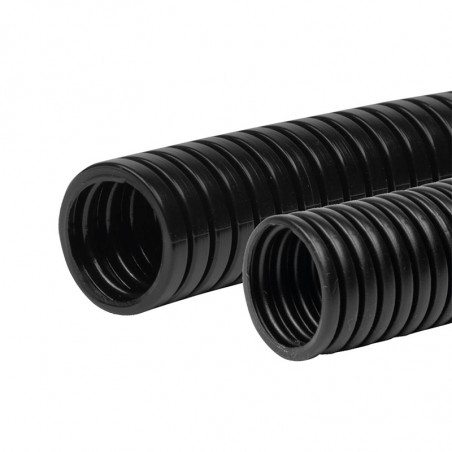

Protective pipes FFMYD-V2
  • Protective pipes FFMYD-V2

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Fränkische

Protective pipes FFMYD-V2

Technical data

Preferences

Material
PA 6 - V2
Max operation temperature
3000 h 120 OC

500 h 150 OC
Min operation temperature
-40OC
Flammability class
FMVSS 302 UL94 V2

Self extinguishing
Non halogen
yes
Material declaration needed
no
other informations
Chemical resistance

Fuels, Mineral oils, grease, dis solvents.

- cut products
402-xxx-10
- other lenghts:
request
- special colours:
request


Dimensions

product number black colour cut product number grey colour Nominal diameter NW Ø - I
[mm]
Ø - A
[mm]
400-003-00 402-003-00 3 3,0 5,1
400-004-00 402-004-00 4,5 4,5 7,1
400-005-00 402-005-00 5 5,0 7,1
400-006-00 402-006-00 6 6,1 8,7
400-007-00 402-007-00 7,5 6,6 10,0
400-008-00 402-008-00 8,5 8,4 11,5
400-010-00 402-010-00 10 9,8 12,8
400-011-00 402-011-00 11 10,5 13,6
400-012-00 402-012-00 12 12,3 15,7
400-013-00 402-013-00 13 12,7 16,0
400-014-00 402-014-00 14 14,2 18,5
400-016-00 402-016-00 16 14,9 18,9
400-017-00 402-017-00 17 16,6 21,1
400-019-00 402-019-00 19 19,2 24,2
400-022-00 402-022-00 22 21,2 25,5
400-023-00 402-023-00 23 23,1 28,4
400-026-00 402-026-00 26 25,7 31,2
400-029-00 402-029-00 29 28,9 34,5
400-033-00 402-033-00 33 32,8 38,3
400-037-00 402-037-00 37 34,0 42,2
400-050-00 402-050-00 50 45,6 53,8
400-065-00 402-065-00 65 62,7 73,5
400-075-00 402-075-00 75 76,7 85,2
400-100-00 402-100-00 100 101,0 110,0
