Digital time relay - PTM232
  • Digital time relay - PTM232

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Sisel

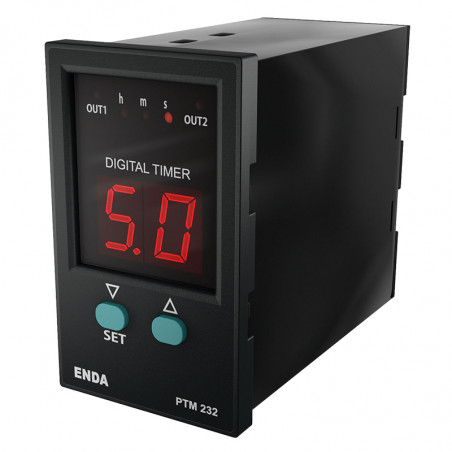

Digital time relay - PTM232

Dimensions: W44xH73xD90mm.
2 relay outputs.
Relay output can be adjusted for set value..
Time range:
  • 0 - 9,9 sec,
  • 0 - 99 h.

Start by start input.
6 different timing functions can be selectable
LED indicator for power supply and output
11-pin connector.


Technical data :
Dimensions
W44xH73xD90mm

Time ranges
It can be adjustable between 0-9.9 seconds and 0-99 hours.
Accuracy
±1%
Start
By start input
Output function
6 different timing functions can be selectable.
Output 1
1 relay 230V AC, 2A (for resistive load), NO+NC.
Output II
1 relay 230V AC, 2A (for resistive load), NO+NC.
Reset
 By reset input
Supply voltage
230V AC +10% -20%, 50/60Hz or 24V AC ±10%, 50/60Hz or optional 9-30V DC / 7-24V AC ±10% SMPS module.
Power consumption
2VA
Ambient temperature
0... 50°C
Wiring
11 pins round socket
Weight
215g


Type Description
PTM232 time relay, power supply 230 V AC
PTM232-SM time relay, power supply 9-30 VDC/7-24 VAC
ERS11 11 pins round socket DIN assembled

Dimensions
Terminals

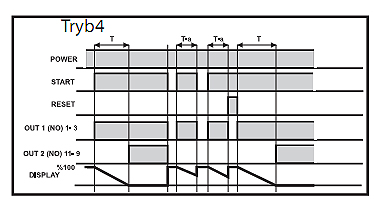

Output functions
